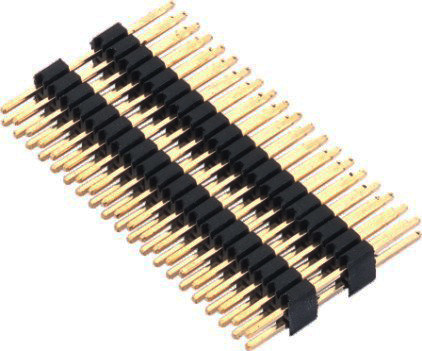

1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector

1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector

  • 1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector
  • 1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector
  • 1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector
  • 1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector
1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 1325-22XXXXSXXXCXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiaiton
Packaging Details: Tube Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000Kpcs
Contact Now
Detailed Product Description
Gender: Male Application: PCB Board
Trademark: WCON Pitch: 1.27mm
Insulation Resistance: 1000mΩ Min Contact Plating: Au Or Sn Over Ni
Port: Hong Kong Color: Black
Highlight:

dual row header connector

,

1.27 mm pitch connector

1.27mm Dual Row Double Plastic PA9T Black Pin Header Connector Brass Gold Flash



Rated Current 1.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au over Ni
Insulator Material PA9T Black+30%GF UL94V-0 BK



Product Name: 1.27mm pin connector

1. features: the use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task.

2. material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.

3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.



1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Pin Header 1325-22XXXXSXXXCXXX.pdf

1.27mm Pin Header Connector Dual Row Double Plastic PA9T Black Pcb Pin Connector 2
