High End Precision Connectors and Customer Solution Service Provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | UL/SGS/ROHS |
| Model Number: | 1240-12XXXXRXXXC0XX |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiaiton |
| Packaging Details: | tube packing |
| Delivery Time: | 15~25Day |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Plasitc High: | H=4.0 | Type: | Double Row |
|---|---|---|---|
| Pitch: | 2.0mm | Color: | Black |
| Port: | Hong Kong | ||
| High Light: | 2mm Male And Female Header Pins,500V Male And Female Header Pins,PA9T Dual Row Header Connector |
||

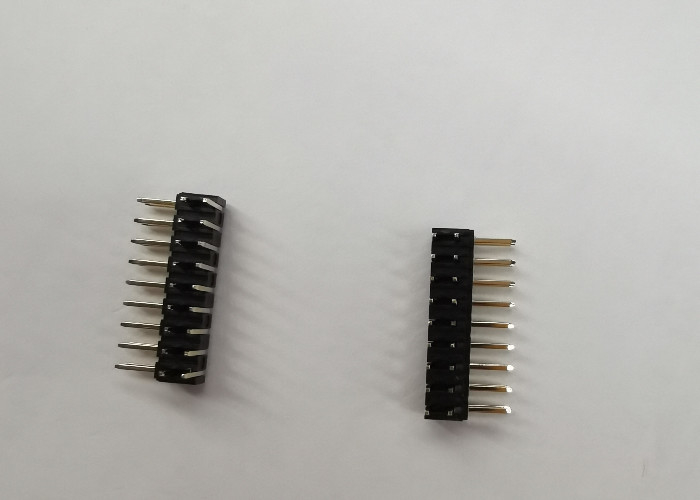

Right Angle Pin Header 2mm Pitch Connector , PA9T Black Double Row
Double Row 3 pin Header is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.
| Rated Current | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PA9T Black+30％GF UL94V-0 BK |
| Product Name: pin connector | ||||||||
| Features: The widely used environmental protection fireproof antioxidant has strong conductivity, can block the isolation in the circuit or between circuits, play a bridging role, and undertake current tasks or signal transmission. | ||||||||
| product material: its material is brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, the surface of nickel plating, nickel plating. | ||||||||
| Application range: 3 pins are widely used in monitors, digital cameras, MP3, MP4, PDA, computers, computer motherboards, mobile storage disks, card readers, security products, electricity meters, cordless phones, mobile phones, walkie-talkies, program-controlled switches, VCD, DVD , LCM/LED display modules, electronic toys, household appliances, etc. Provide the most reliable connection for board-to-board and wire-to-board. |
Right angle 2.0mm pitch double row 2*15P PA9T black gold flash ROHS.
Drawing:pin header 1240-12XXXXRXXXC0XX.pdf
