| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | UL/SGS/ROHS |
| Model Number: | 1725A-12XXXXMXXXCXXX |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiaiton |
| Packaging Details: | Reel packing |
| Delivery Time: | 15~25Day |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Port: | Hong Kong | Pitch: | 2.50*2.54mm |
|---|---|---|---|
| Plastic: | PA9T | Color: | Black |
| Type: | SMT | Terminal: | Matte SN |
| High Light: | dual row header connector,1.27 mm pitch connector |
||
Drawing:pin header 1725A-12XXXXMXXXCXXX.pdf

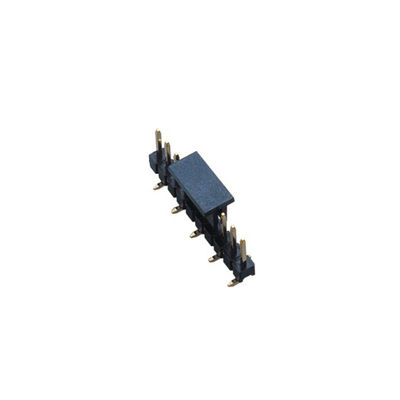

2*4P SMT 2.50*2.54 Pin Header PA9T black Without CAP Matte Sn ROHS
| Product Name: pin connector | ||||||||
| eatures: the use of a wide range of environmental protection fireproof antioxidant strong conductivity, to be blocked in the circuit between the circuit or isolated, play bridge function, assume the current task or signal transmission. | ||||||||
| product material: its material is brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, the surface of nickel plating, nickel plating. | ||||||||
| Application scope: 3 pin is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
