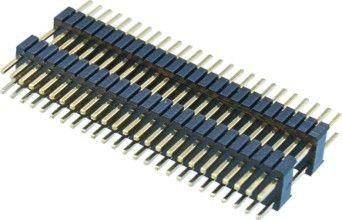

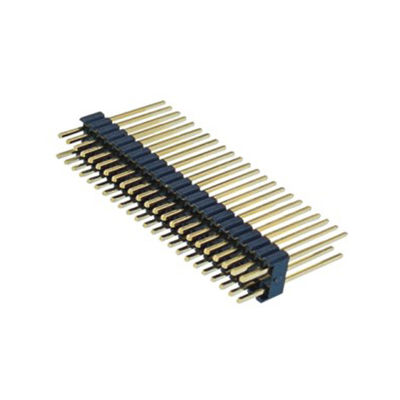

WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP PA9T Brass H=2.54

WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP PA9T Brass H=2.54

    • WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54
    • WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54
    • WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54
    • WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54
  • WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/CUL/SGS/ROHS
    Model Number: 1425-22XXXXSXXXCXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiaiton
    Packaging Details: Tube Reel
    Delivery Time: 15-25Day
    Payment Terms: T/T
    Supply Ability: 800000Kpcs
    Contact Now
    Detailed Product Description
    Gender: Male Pin Header Application: PCB Board
    Trademark: WCON Pitch: 1.27mm*2.54
    Pins: 2*25P Sample: Free

    1.27*2.54mm Pin Header Connector Dual Row Double Plastic 180° DIP PA9T Brass H=2.54



    Rated Current 1.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃
    Contact Material Brass
    Contact Plating Au over Ni
    Insulator Material PA9T Black+30%GF UL94V-0 BK



    Product Name: pin connector



    1. pin header features: the use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task.



    2. male pin header material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.



    3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.



    WCON 1.27*2.54mm Pcb Header Connector Double Plastic 180° DIP  PA9T  Brass H=2.54



    1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Pin Header 1425-22XXXXSXXXCXXX.pdf
