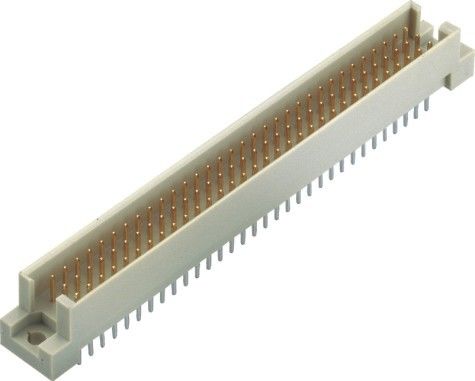

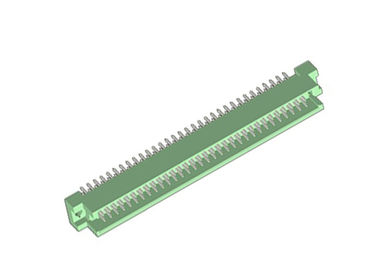

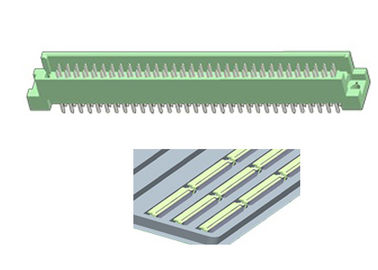

European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612 2.54mm ROHS

China European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS supplier
European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS supplier European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS supplier European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS supplier European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS supplier

Large Image :  European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612 2.54mm ROHS

Product Details:

Place of Origin: China
Brand Name: WCON
Certification: UL//SGS/ROHS
Model Number: 3410-3XXXMSSXXAX

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tray
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Gender: Male Contact Resistance: 30mΩ Max
Sample: Free Insulation Resistance: 1000mΩ
Operation Temperature: ﹣55℃ To +105℃ Current Rating: 3.0AMP
Port: Hong Kong Color: Grey

2.54mm 3*32P Straight DIP PBT Male Din41612 Connector pcb Male

European connector Straight DIP PBT grey Pcb Male 96Pin Din 41612  2.54mm ROHS

1. Current Rating 3.0AMP
2. Contact Resistance 30mΩ Max
3. Withstand Voltage 1000V AC/DC
4. Insulation Resistance 1000mΩ
5. Operation Temperature ﹣55℃ to +105℃
6. Contact Material Brass
7. Contact Plating Au And Sn over Ni
8. Fixing Material Phosphor Bronze
9. Fixing Plating Sn over Ni
10. Insulation Material PBT+30%GF(UL94V-0)



Product Name: DIN41612 connector

1. the characteristics: the product precision and reliable performance, good force strong

2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.

3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.





WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:D41612 3410-3XXXMSSXXAX.pdf
