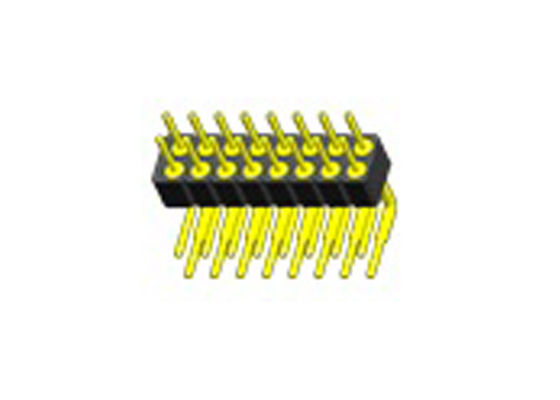

WCON Round Pin Header Female 2mm For PCB Computer Communication Cable

WCON Round Pin Header Female 2mm For PCB Computer Communication Cable

  • WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable
  • WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable
  • WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable
  • WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable
WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL//SGS/ROHS
Model Number: 3522-282XXRXX096X1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube Tray
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Gender: Female Mating: Round Male Header
Type: Board To Board Sample: Free
Operation Temperature: ﹣40℃ To +105℃ Product Name: Maching Female Header
High Light:

WCON connector 2.54 mm pitch

,

WCON 1.27 mm female header

,

WCON Round Pin Header

2.00mm 2*10P H=2.8mm L=9.6mm Right angle DIP WCON Connector Round Female Header



1.Current Rating

3.0AMP
2.Contact Resistance 10mΩ Max
3.Dielectric Strength Min 1000VRMS
4.Mechanical Life Min 500 cycles
5.Mating Pin ∅0.40 To ∅0.66mm  or 0.50SQ
Forces Polished Steel Gauge  ∅0.47mm
Insertion 200g Max/Pin  Withdrawal:60g/pin
Operation Temperature -40℃ to +105℃
Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
Contact Clip(4 Finger) BeCu(C17200) Au Sn over Ni
Insulator Material PPS+30%GF(UL94V-0)



Product Name: 2.0mm Michined pin connector

1. features: the contact reliability, anti vibration, contact resistance

2. product material: PPS, PA46 or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: brass parts

3. scope of application: PCB computer communication cable, LED integrated circuit IC power car display



WCON Round Pin Header Female 2mm  For PCB Computer Communication Cable 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0 Drawing:Maching Female 3522-282XXRXX096X1.pdf
