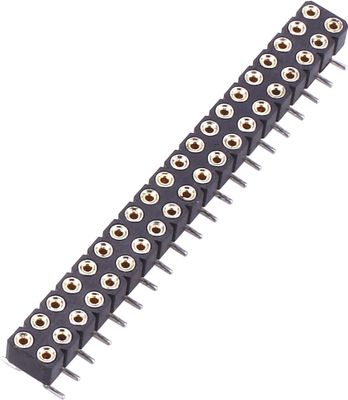

Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board Connectors

    • Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors
    • Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors
    • Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors
    • Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors
  • Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/CUL/SGS/ROHS
    Model Number: 3522-282XXMXX074X1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Negotiation
    Packaging Details: Tube Tray
    Delivery Time: 15-25Day
    Payment Terms: T/T
    Supply Ability: 800000kpcs
    Contact Now
    Detailed Product Description
    Gender: Female Mating: Maching Male Header
    Type: Board To Board Field Of Application: PCB Computer
    Operation Temperature: ﹣40℃ To +105℃ Product Name: Maching Female Header

    Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board Pin Connectors



    1. Current Rating

    3.0AMP
    2. Contact Resistance 10mΩ Max
    3. Dielectric Strength Min 1000VRMS
    4. Mechanical Life Min 500 cycles
    5. Mating Pin ∅0.40 To ∅0.66mm  or 0.50SQ
    6. Forces Polished Steel Gauge  ∅0.47mm
    7. Insertion 200g Max/Pin  Withdrawal:60g/pin
    8. Operation Temperature -40℃ to +105℃
    9.Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
    10. Contact Clip(4 Finger) BeCu(C17200) Au Sn over Ni
    11. Insulator Material PPS+30%GF(UL94V-0)



    Product Name: Michined pin connector



    1. Female Pin Header features: the contact reliability, anti vibration, contact resistance



    2. product material: PPS, PA46 or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: brass parts



    3. scope of application: PCB computer communication cable, LED integrated circuit IC power car display



    Straight SMT Maching Round Pin Header 2.00mm 2*20P Circuit Board  Connectors



    1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0Drawing:Maching Female3522-282XXMXX074X1.pdf
