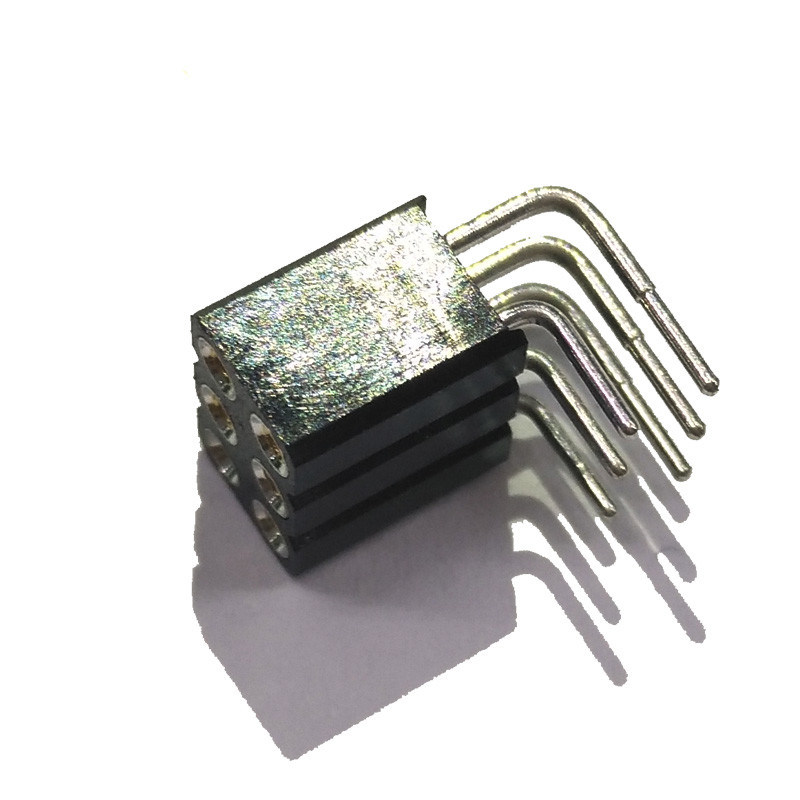

2.54mm Machined Female 2*3P Right Angle Round Pin Header Gold Flash / Sn PPS ROHS

2.54mm Machined Female 2*3P Right Angle Round Pin Header Gold Flash / Sn PPS ROHS

  • 2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS
  • 2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS
  • 2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS
  • 2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS
2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3520-302XXRS0097X1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: tube packing
Delivery Time: 15~25 Working Days
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Pitch: 2.54mm Gender: Female
Color: Black Plasitc: PPS
Plasitc High: H=3.0 Type: Four Clip
High Light:

single row pin header

,

1.27 mm female header

1. Current Rating 3.0AMP
2. Contact Resistance 10mΩ Max
3. Dielectric Strength Min 1000VRMS
4. Mechanical Life Min 500 cycles
5. Mating Pin ∅0.40 To ∅0.66mm Or 0.50SQ
6. Forces Polished Steel Gauge ∅0.47mm
7. Insertion 200g Max/Pin Withdrawal:60g/pin
8. Operation Temperature -40℃ to +105℃
9.Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
10. Contact Clip(4 Finger) BeCu(C17200) Au Sn over Ni
11. Insulator Material PPS+30%GF(UL94V-0)



Product Name: Round female  connector
product features: high contact reliability, vibration resistance, small contact impedance
product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass
scope of application: PCB computer communication cable LED integrated circuit IC power car monitor







2.54mm Machined Female 2*3P Right  Angle Round Pin Header Gold Flash / Sn PPS ROHS 0



 WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’‚°DIPDrawing:3520-302XXRXX097X1.pdf
