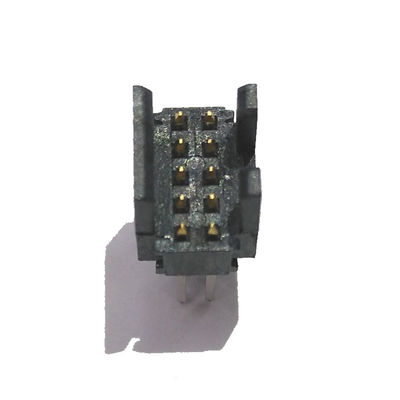

1.27 Pitch Box Header Connector Straight Bend PCB Power Connectors

1.27 Pitch Box Header Connector Straight Bend PCB Power Connectors

  • 1.27 Pitch Box Header Connector Straight  Bend PCB Power Connectors
  • 1.27 Pitch Box Header Connector Straight  Bend PCB Power Connectors
1.27 Pitch Box Header Connector Straight  Bend PCB Power Connectors
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 3132-XXMS0BK00T1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Product Category: Box Header Product Material: PA9T/LCP/PBT
Contact Material: Brass Contact Plating: Au Or Sn Over Ni
High Light:

board to wire connectors

,

male header connector

1.27Pitch Box Header Connector straight bend pcb power connectors



Current Rating 1AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au or Sn over Ni
Insulator Material PA9T +30%GF( UL94V-0 )



Product name: Ejector



1. Product features: high temperature resistant to high voltage electrical conductivity



2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating



3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal



1.27 Pitch Box Header Connector Straight  Bend PCB Power Connectors 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0Drawing:Box Header 3132-XXMXXBK00XX.pdf
