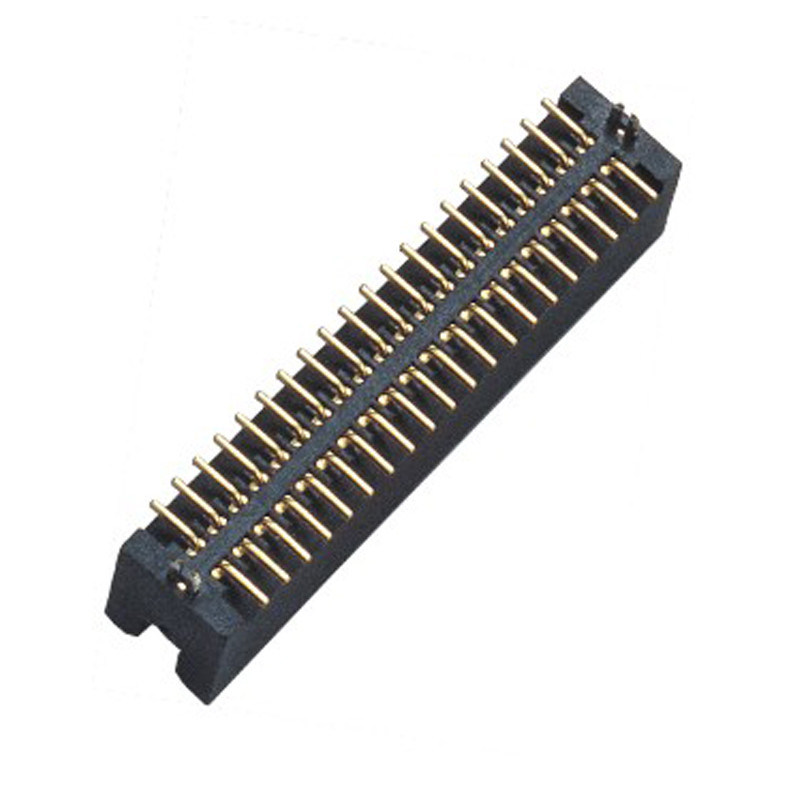

Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon

Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon

  • Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon
  • Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon
Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 3131-XXMG0BK00T3
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Product Category: Plate Alignment Product Use: Transmission Control Signal
Product Type: Simple Beef Fork With Hairtail Withstand Voltage: 500V AC/DC
High Light:

board to wire connectors

,

male header connector

Box Header Connector 1.27Pitch SMT PA9T Brass With Harpoon pcb power connectors



Current Rating 1AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au Or Sn over Ni
Insulator Material PA9T +30%GF( UL94V-0 )
6 To 8 Pin No "D" Configuration and CAP



Product name: Ejector



1. Product features: high temperature resistant to high voltage electrical conductivity



2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating



3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal



Plate Alignment Box Header Connector SMT PA9T Brass With Harpoon 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0Drawing:Box Header 3131-XXMXXBK00X3(H=5.7).pdf
