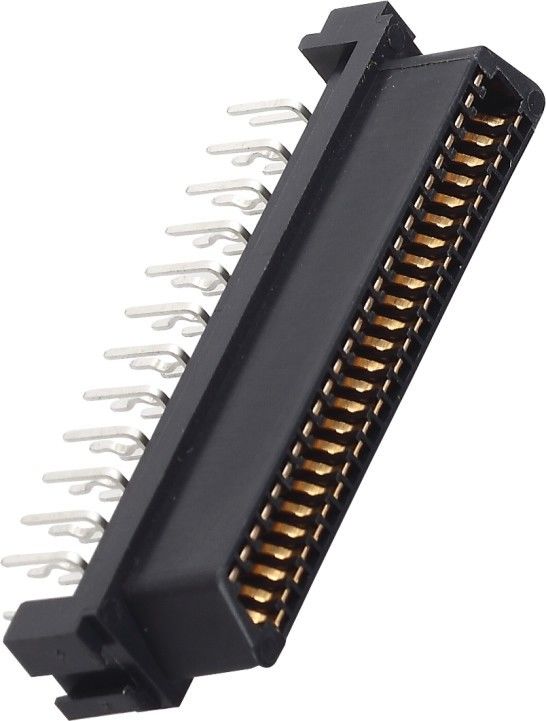

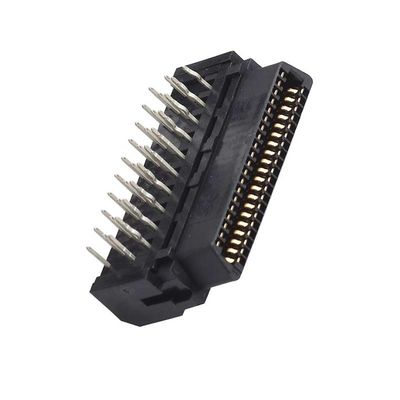

1.27mm board to board connector female DDK-Type 40 pin scsi connector

1.27mm board to board connector female DDK-Type 40 pin scsi connector

  • 1.27mm board to board connector female DDK-Type 40 pin scsi connector
  • 1.27mm board to board connector female DDK-Type 40 pin scsi connector
  • 1.27mm board to board connector female DDK-Type 40 pin scsi connector
1.27mm board to board connector female DDK-Type 40 pin scsi connector
Product Details:
Place of Origin: Dongguan, Guangdong, China.
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 6321D-XXXSDXXPXX01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable. It depends on the customers' requests.
Packaging Details: Tube/Tray
Delivery Time: 15-25 Days
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Contact Plating: Gold On Contact, Tin On Tail Contact Shape: Right Angle/Straight
Type: I/O Connector No Of Pins: 20/26/30/34/40/50/60/68Pins
Pitch: 1.27mm Insulator Material: Polyester
Contact Material: Phosphor Bronze Key Words: 1.27mm Board To Board Connector Female DDK-Type 40 Pin Scsi Connector
High Light:

right angle connector

,

scsi drive connector

1.27mm board to board connector female DDK-Type 40 pin scsi connector



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:SCSI 6321D-XXXSDXXPXX01.pdf



Products Issues Products Descriptions
Products Characteristics

SCSI is an interface that connects hosts and peripheral devices, supporting a variety of devices including disk drives, tape drives, optical drives, scanners and more. It is operated by the SCSI controller for data operations, SCSI 68P controller equivalent to a small CPU, with its own command set and cache.

Mainly in electronic products and electrical equipment to provide convenient electrical plug-in connection, widely used in electronic equipment so that the production of electronic products and maintenance efficiency can be greatly improved.
Products Specifications Current Rating 0.5AMP
Contact Resistance 35 Milliohm Max
Insulation Resistance 500 Milliohm Min
Withstand Voltage 500V AC/Minute
Operation Temperature -40℃ to + 125 ℃
Contact Material Phosphor Bronze
Contact Plating AU or SN over Ni
Insulator Material Polyester
Standard PBT Black + 30% GF
Products Applications Mainly used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection.



1.27mm board to board connector female DDK-Type 40 pin scsi connector 1
