High End Precision Connectors and Customer Solution Service Provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | UL/CUL/SGS/ROHS |
| Model Number: | 6320-0XXSSXXMNA01 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable. It depends on the customers' requests. |
| Packaging Details: | Tube/Tray Packing |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T |
| Supply Ability: | 800000kpcs |
| Pitch: | 1.27mm | No Of Pins(6320): | 50/68 Pins |
|---|---|---|---|
| No Of Pins(6320M): | 14/20/26/36/50/68/100Pins | Contact Plating: | Au And Sn Over Ni |
| Insulator Material: | Polyester(UL94V-0) | Contact Material: | Phosphor Bronze |
| Shell Material: | SPCC T=0.50mm | ||
| High Light: | right angle connector,scsi interface connector |
||

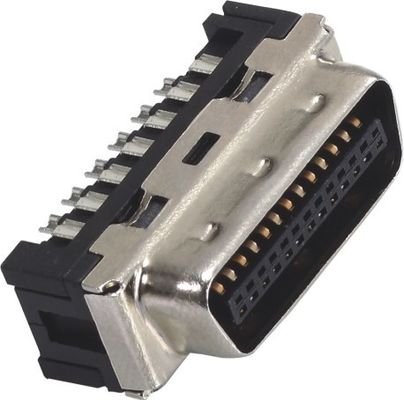

1.27mm scsi connector cen-type male mating with 6321/6321M 50 pins phosphor bronze polyester
Drawing:SCSI 6320-050SSXXMNA01.pdf
| Products Issues | Products Descriptions | |
| Products Characteristics | SCSI is an interface that connects hosts and peripheral devices, supporting a variety of devices including disk drives, tape drives, optical drives, scanners and more. It is operated by the SCSI controller for data operations, SCSI 68P controller equivalent to a small CPU, with its own command set and cache. Mainly in electronic products and electrical equipment to provide convenient electrical plug-in connection, widely used in electronic equipment so that the production of electronic products and maintenance efficiency can be greatly improved. |
|
| Products Specifications | Current Rating | 1.0AMP |
| Contact Resistance | 35 Milliohm Max | |
| Insulation Resistance | 1000 Milliohm Min | |
| Withstand Voltage | 500V AC/Minute | |
| Operation Temperature | -55℃ to + 85℃ | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Au or Sn over Ni | |
| Insulator Material | Polyester(UL94V-0) | |
| Standard | PBT & LCP Black + 30%GF | |
| Products Applications | Mainly used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection. | |
