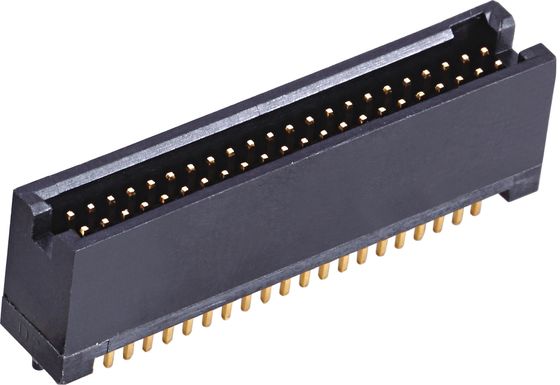

1.27 Pitch 2*22P 180° DIP Box Header Connector LCP Brass Gold Flash H=8.6~11.8 male pin headers

Product Details:

Place of Origin:	China
Brand Name:	WCON
Certification:	UL/CUL/SGS/ROHS
Model Number:	3100-XXSXXBXXXX1

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	Tube Reel
Delivery Time:	15-25Day
Payment Terms:	T/T
Supply Ability:	800000kpcs

Contact Now

Detailed Product Description

Contact Resistance:	20mΩ Max	Withstand Voltage:	500V AC/DC
Operation Temperature:	﹣40℃ To +105℃	Material:	LCP
Sample:	Free	Gender:	Male
High Light:	board to wire connectors , male header connector

1.27 Pitch 2*22P 180° DIP Box Header LCP Brass Gold Flash H=8.6~11.8


Current Rating	1AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au over Ni
Insulator Material	LCP+30％GF( UL94V-0 )

Product name: Ejector Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal
