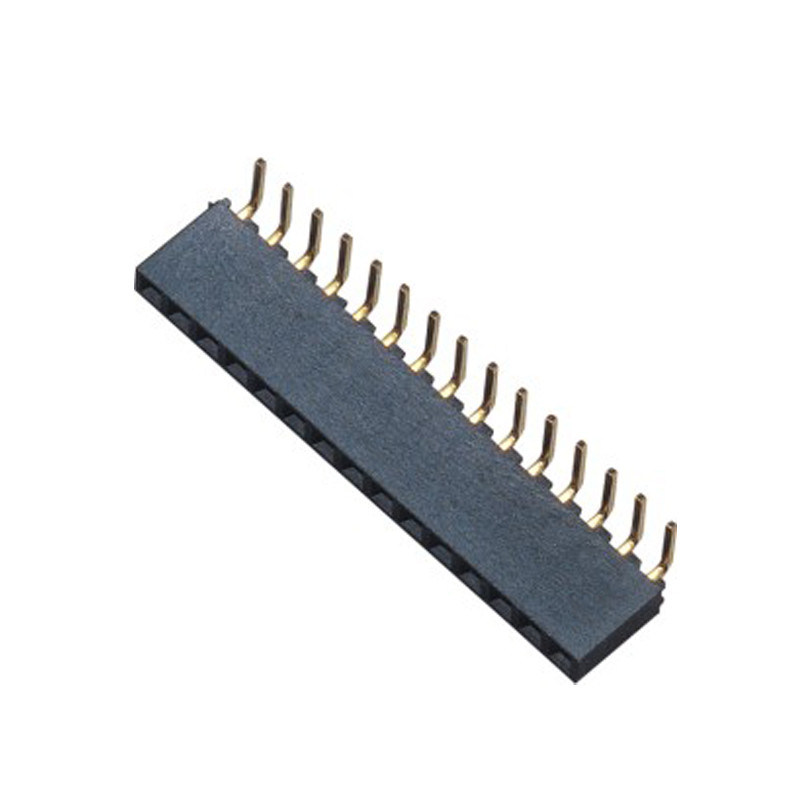

2 pitch single row bent insert female connector plastic height 6.35mm Curved plug

2 pitch single row bent insert female connector plastic height 6.35mm Curved plug

    • 2 pitch single row bent insert female connector plastic height 6.35mm Curved plug
    • 2 pitch single row bent insert female connector plastic height 6.35mm Curved plug
  • 2 pitch single row bent insert female connector plastic height 6.35mm Curved plug

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: 2263-1XXRG0DYNT1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiaiton
    Packaging Details: Tube
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000kpcs
    Contact Now
    Detailed Product Description
    Insulator Material: LCP+30%GF UL94V-0 Contact Plating: AU Over Ni
    Contact Material: Phosphor Bronze Product Form: Curved Plug
    Product Usage: With The Use Of Needle Insertion

    2 pitch single row bent insert female connector plastic height 6.35mm​



    Current Rating 2.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃





    Item name: female connector:

    1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.



    2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.



    3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



    2 pitch single row bent insert female connector plastic height 6.35mm Curved plug



      1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Female Header 2263-1XXRXXDYNT1.pdf
