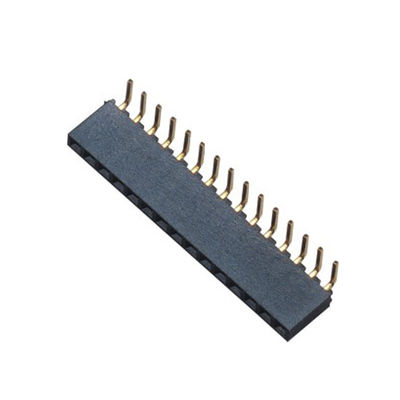

Female Header Connector Right Angle PA9T Gold Flash high temperature

Female Header Connector Right Angle PA9T Gold Flash high temperature

    • Female Header Connector Right Angle PA9T  Gold Flash  high temperature
    • Female Header Connector Right Angle PA9T  Gold Flash  high temperature
  • Female Header Connector Right Angle PA9T  Gold Flash  high temperature

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: 2243-1XXRG0CUNT1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiaiton
    Packaging Details: Tube
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000kpcs
    Contact Now
    Detailed Product Description
    Current Rating: 2.0AMP Insulator Material: PA9T+30%GF UL94V-0
    Contact Plating: AU Over Ni Port: Hong Kong
    Product Features: High Degree Of Contact Reliability, Anti-vibration Recommended Level: High

    2.0 Female Header,Single Row,Right Angle PA9T BLACK H=4.3,W=2.75,DIP=2.0,Gold Flash,​



    Current Rating 2.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃
    Contact Material phosphor Bronze
    Contact Plating AU over Ni
    Insulator Material PA9T+30%GF UL94V-0





    Item name: female connector:

    1.product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.



    2.product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.



    3.scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



    Female Header Connector Right Angle PA9T  Gold Flash  high temperature



      1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Female Header 2243-1XXRXXCUNT1.pdf
