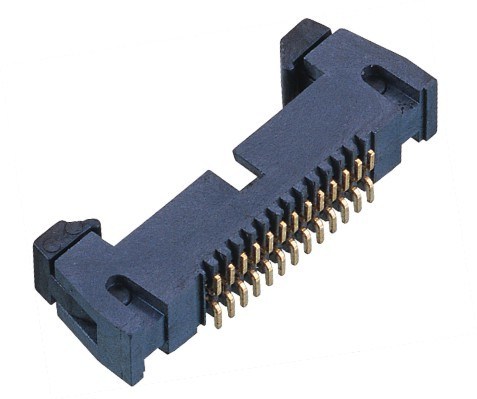

2.00mm 180°SMT Dual Row Header Latch Header 26 Pin Connector

2.00mm 180°SMT Dual Row Header Latch Header 26 Pin Connector

  • 2.00mm 180°SMT Dual Row Header  Latch Header 26 Pin Connector
  • 2.00mm 180°SMT Dual Row Header  Latch Header 26 Pin Connector
2.00mm 180°SMT Dual Row Header  Latch Header 26 Pin Connector
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 3221-XXMXXBXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Gender: Male Name: Pin Header 2mm
Pitch: 2.00mm Insulation Resistance: 1000mΩ Min
Operation Temperature: ﹣40℃ To +105℃ Contact Material: Brass
High Light:

ejector header

,

2mm header connector

2.00mm 180°SMT Dual Row Header Latch Header 26 Pin Connector​



Current Rating 2.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating AU Sn over Ni
Insulator Material LCP+33%GF UL94V-0



Product Name: WCON Ejector Header / Dual Row Header Connector



1. features: high temperature resistance, high voltage electrical conductivity



2. material: PA9T/LCP/PBT plating surface treatment: gold or tin



3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current





  2.00mm 180°SMT Dual Row Header  Latch Header 26 Pin Connector 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0Drawing:Ejector Header 3221-XXMXXBST1.pdf
