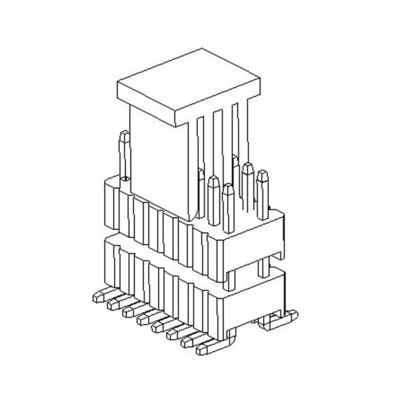

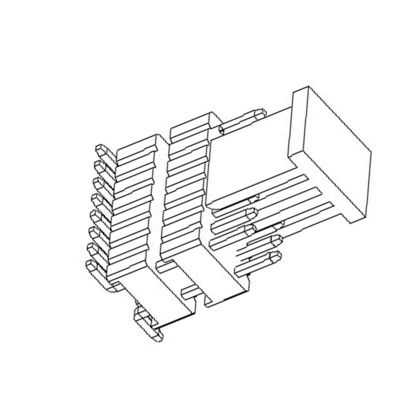

1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic

1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic

    • 1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic
    • 1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic
    • 1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic
  • 1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/CUL/SGS/ROHS
    Model Number: 1310-22XXXXMXXXCXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiaiton
    Packaging Details: Tube/ Reel
    Delivery Time: 15-25 Days
    Payment Terms: T/T
    Supply Ability: 800000Kpcs
    Contact Now
    Detailed Product Description
    Gender: Male Application: PCB Board
    Trademark: WCON Pitch: 1.27mm
    Product Name: 1.27mm Pitch Male Header SMT Contact Plating: Au Or Sn Over Ni

    1.27mm Doul Row Double Plastic SMT H=1.0 PA9T Black Pin Header Connector Brass Gold Flash



    Rated Current 1.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃
    Contact Material Brass
    Contact Plating Au over Ni
    Insulator Material PA9T Black+30%GF UL94V-0 BK



    Product Name: pin connector



    1. features: Male Pin Header Connector use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task.



    2. material: Male Pin Header Connector is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.



    3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.



    1.27mm Pin Header Connector H=1.0mm SMT Doul Row Double Plastic



    1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Pin Header 1310-22XXXXMXXXCXXX.pdf





    Company Profile



    WCON Group, established in May of 1999, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices. After 20 years of steady development, Now have two factories: Dongguan WCON Hardware Electronics Co., Ltd and Kunshan Wcon Electronics Co., Ltd. Since its foundation, the company sticks to the production of specialization and tries its best to supply precise and reliable connector products, from the develop, design and manufacture of metal terminal and plastic molds to the precision high-speed punch molding, precise plastic injection molding and automatic assembly, that have a skilled R&D and management team.



    The factory, with a floorage of 13,000m2 for plant , has about 650 employees and owns 50sets precision molding equipments, 26 sets Taiwan & Japan 30~120 ton precision plastic injection machines, 16 sets Japan &Taiwan precision high-speed punch machines, more than 500 sets Various types of plastic molds and more than 300 sets hardware terminal molds, over 300 sets machines for automatic assembly that can provide customers with over 13 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

    factory laboratory have various testing equipments 30 sets, that is UL-authorized witness test laboratory, with the UL authorize number:113185001. At present, Our laboratory is applying the for national test laboratory accreditation.



    Wcon that emphasize canonical enterprise management and high-quality requirements since its founding. We has already acquired ISO9001, TS16949 quality management system certification; ISO14001, QC080000 environment and management systems certification and OHSAS18001 occupation health safety management system certification. The company main 13 series products obtained American UL & CUL certification, with the No. E248993, E46999. All items are in line with EU RoHS and REACH environmental green requirements.
