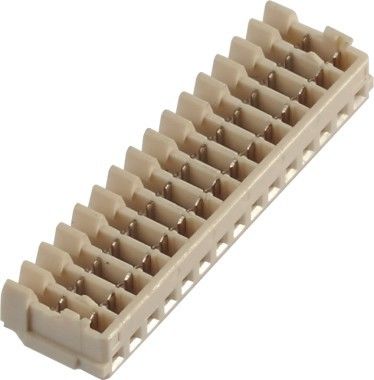

1.5 mm Pitch Female Connector / Circuit Board Wire Connectors

1.5 mm Pitch Female Connector / Circuit Board Wire Connectors

1.5 mm Pitch Female Connector / Circuit Board Wire Connectors

Product Details:

Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: WF1503-HIXXE01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE Bag
Delivery Time: 15-25 Working Days
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Pin: 02~20P Withstand Voltage: 800V AC/Minute
Type: Wafer Housing Terminal Gender: Female
Insulation Resistance: 500mΩ Min Pitch: 1.5mm

1.5mm 02~20P Wafer Wire To Board Connector Housing 1.0AMP



Current Rating 1.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 800V AC/Minute
Insulation Resistance 1000mΩ Min
Operation Temperature -25℃ to +85℃
Contact Material Phosphor Bronze
Contact Plating Au Or Sn Over Ni
Insulator Material PA66+30%GF UL94V-0



Product Name: Wafer connector



1. Features: it makes the production process more convenient, more flexible design, reduces the

production and maintenance cost, easy repair, and easy to upgrade, improve the flexibility of design



2. Material: (UL94V-0) PA9T, PA6T, PA46, PA66 etc.



3. Scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical and electronic products production, military and aerospace industry in which the device connecting the two active devices, current or signal transmission.





1.5 mm Pitch Female Connector / Circuit Board Wire Connectors



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:Wafer WF1503-HIXXW01.pdf
