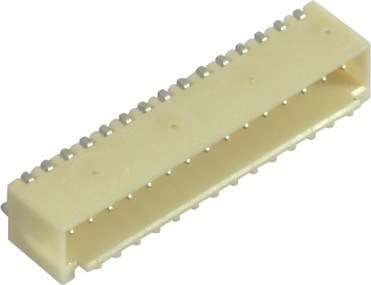

1.5 mm Wafer Male Printed Circuit Board Connectors 02~20P 90° SMT

1.5 mm Wafer Male Printed Circuit Board Connectors 02~20P 90° SMT

1.5 mm Wafer Male Printed Circuit Board Connectors 02~20P 90° SMT

Product Details:

Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: WF1502-WZXXX01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE Bag
Delivery Time: 15-25 Working Days
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Pin: 02~20P Rated Voltage: 100V AC/DC
Type: Wafer Housing Terminal Gender: Male
Insulation Resistance: 500mΩ Min Pitch: 1.5mm

1.5mm 02~20P 90°SMT Wafer Wire To Board Connector Sn Plated



Rating Current 1.0AMP
Rated Voltage 100V AC/DC
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/Minute
Insulation Resistance 500mΩ Min
Operation Temperature -25℃ to +85℃
Contact Material Brass
Contact Plating Sn Over Ni
Insulator Material High Temperature Plastic UL94V-0



Product Name: Wafer connector



1. Features: it makes the production process more convenient, more flexible design, reduces the

production and maintenance cost, easy repair, and easy to upgrade, improve the flexibility of design



2. Material: (UL94V-0) PA9T, PA6T, PA46, PA66 etc.



3. Scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical and electronic products production, military and aerospace industry in which the device connecting the two active devices, current or signal transmission.





1.5 mm Wafer Male Printed Circuit Board Connectors 02~20P 90° SMT



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:Wafer WF1502-WZXXXX1 (08--02).pdf
