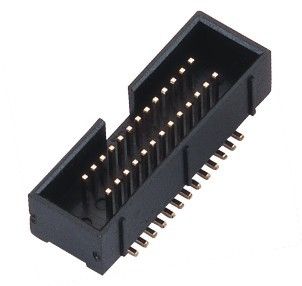

Dual Row SMT Box Header Connector 26 Pin Board To Wire Connectors 20mΩ Max

Dual Row SMT Box Header Connector 26 Pin Board To Wire Connectors 20mΩ Max

    • Dual Row SMT Box Header  Connector 26 Pin Board To Wire Connectors 20mΩ Max
    • Dual Row SMT Box Header  Connector 26 Pin Board To Wire Connectors 20mΩ Max
  • Dual Row SMT Box Header  Connector 26 Pin Board To Wire Connectors 20mΩ Max

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/CUL/SGS/ROHS
    Model Number: 3140-XXMXXBK00XX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Negotiation
    Packaging Details: Tube Reel
    Delivery Time: 15-25Day
    Payment Terms: T/T
    Supply Ability: 800000kpcs
    Contact Now
    Detailed Product Description
    Current Rating: 1AMP Contact Resistance: 20mΩ Max
    Withstand Voltage: 500V AC/DC Insulation Resistance: 1000mΩ Min
    Operation Temperature: ﹣40℃ To +105℃ Contact Material: Brass

    1.27*2.54mm SMT PA9T 30%GF UL94V-0 Box Header Connector 2*13P board to wire connectors



    1. Current Rating 1AMP
    2. Contact Resistance 20mΩ Max
    3. Withstand Voltage 500V AC/DC
    4. Insulation Resistance 1000mΩ Min
    5. Operation Temperature ﹣40℃ to +105℃
    6. Contact Material Brass
    7. Contact Plating Au or Sn over Ni
    8. Insulator Material PA9T +30%GF( UL94V-0 )





    Product name: Ejector Header Connector

    1. Product features: high temperature resistant to high voltage electrical conductivity

    2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

    3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal



    Dual Row SMT Box Header  Connector 26 Pin Board To Wire Connectors 20mΩ Max



    1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0Drawing:Box Header 3140-XXMXXBK00XX(H=5.6).pdf
