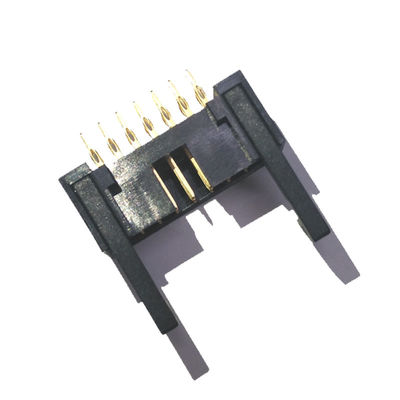

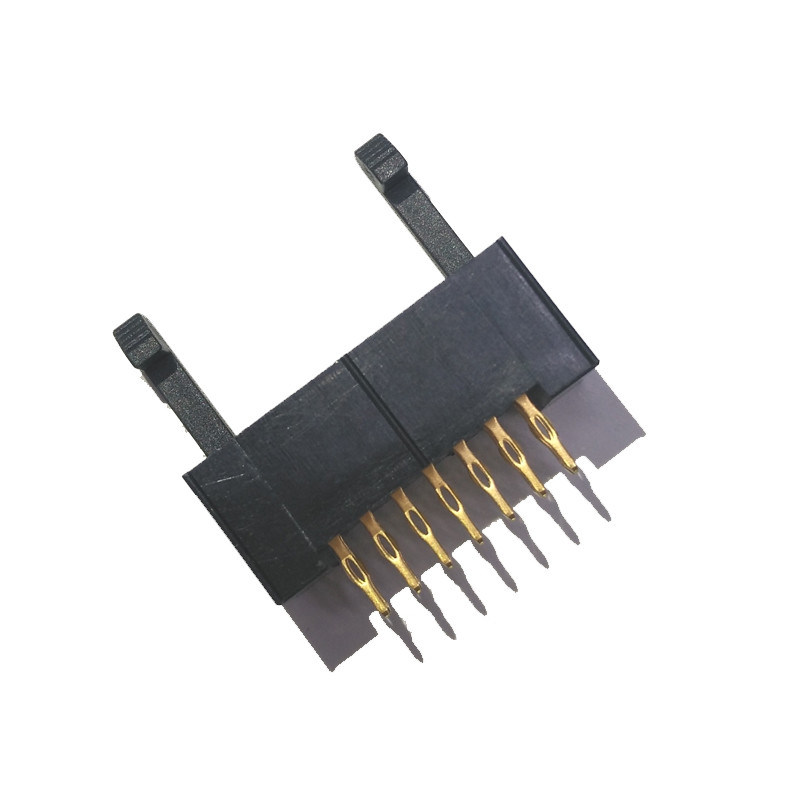

Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header

Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header

    • Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header
    • Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header
    • Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header
    • Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header
  • Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: 3212-XXPXXBLA1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiation
    Packaging Details: tray packing
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000pcs
    Contact Now
    Detailed Product Description
    Plastic: PBT TYPE: Press Fit
    Color: Black Port: Hong Kong
    Palstic High: H=10.3mm Pitch: 2.54mm


    Our Certification
    The company also focused on creating their Dual-brand Strategy "WCON"and"WCONTEK", The "WCON" obtained a trademark registration in the world more than 50 countries and regions, and "WCONTEK" obtained the trademark registration in EU already. At present, "WCON" trademark have obtained "Guangdong Famous Brand" and "China Well-known Trademark" honor already.



    Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header





    Item name: Ejector Header
    Product material: PA9T/LCP/PBT plating surface treatment: gold or tin plating
    Application scope: it is mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need



    Current Rating 3.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃
    Housing Material PA9T+30%GF(UL94V-0)
    Latch Material PA9T+30%GF(UL94V-0)
    Contact Material Brass
    Contact Plating AU Or Sn over Ni
    Fixed Axle Material Brass
    Fixed Axle Plating Ni Plated



    Press Fit Long Latch 2.54 Ejector Header,20P,S/T,PBT,Black H=10.3 ROHS.

    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:3212-XXPXXBXX1.pdf

    Press Fit Type 20 Pin Latch Header Connector , Long Latch 2.54 Mm Pitch Header
