High End Precision Connectors and Customer Solution Service Provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | ROHS/SGS/ROHS |

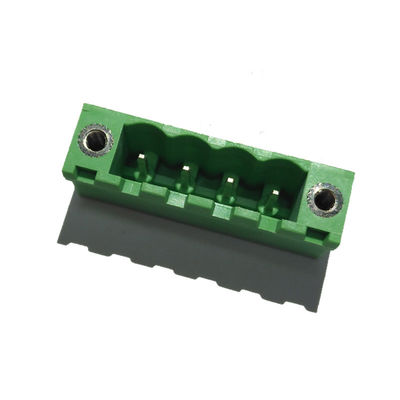

| Model Number: | PM508-1RXXASM2 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | tray pack |
| Delivery Time: | 15~25Day |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Gender: | Male | Port: | Hong Kong |
|---|---|---|---|
| Type: | Close Type | Color: | Green |
| Plastic: | PA66 | ||
| High Light: | pluggable terminal block connector,pcb terminal block connector |
||
Drawing:Terminal block PM508-1RXXASM2.pdf.
| Item name: terminal | ||||||||
| Product features: high switching frequency, high insulation, long service life, high reliability | ||||||||
| Material: copper alloy, copper alloy, nickel or nickel alloy | ||||||||
| Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning. |
| Rated Current | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PBT Black+30％GF UL94V-0 BK |
