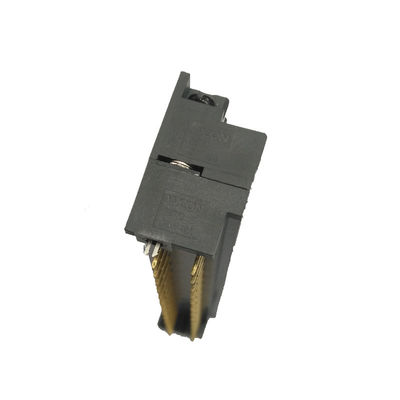

7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT

7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT

    • 7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT
    • 7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT
    • 7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT
  • 7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: BH762-00-14-G-G0-S01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiaiton
    Packaging Details: box packing
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000pcs
    Contact Now
    Detailed Product Description
    Pitch: 7.62mm Plasitc: PBT
    Plasitc High: H=32.8 Port: Hong Kong
    Sulation Resistance: 500MΩ Min DC500V Operation Temperature: -40℃ To +105℃

    7.62*8.0mm Barrier Terminal Block connector2*14PWith Lock H=32.8 PBT UL94V-0.



    Rated Current 10AMP
    Rated Voltage 300V
    Contact Resistance 15 mΩ
    Withstand Voltage 2000V AC/DC
    Sulation Resistance 500MΩ Min DC500V
    Operation Temperature ﹣40℃ to +105℃
    Torque value 0.5N.m
    Operation Temperature ﹣40℃ to +105℃
    Storage Temperature ﹣10℃ to +40℃
    Insulator Material PA66+25%GF(UL94V-0)
    Terminal Material Brass
    Terminal Platig Sn Plated Over Nickel
    Screw material C1018A
    Screw Plated Ni Plating



    Item name: terminal
    Product features: high switching frequency, high insulation, long service life, high reliability
    Material: copper alloy, copper alloy, nickel or nickel alloy
    Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning.





    7.62mm Pitch Barrier Terminal Blocks Connector 2*14P With Lock H=32.8 PBT





          WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’Æ’‚ÃÆ’‚°DIPDrawing:BH762-00-14-G-G0-S01.pdf.







    Since its foundation, the company sticks to the
    principle of specialization and tries its best to
    Supply customers with products of high quality at competitive prices,
    regarding .From the development and design of metal and plastic molds,
    molds making, precision high-speed punch molding, precise plastic injection mol
    ding and then automatic assembly.
    The company has a strong design and development team ,access to more than 38
    technical patents and 6 invention patents.
    Dongguan factory laboratory have various testing equipment more than 30 sets, that is
    UL-authorized witness test laboratory, with the UL authorize number:113185001. At present,
    Our laboratory is applying the for national test laboratory accreditation.
