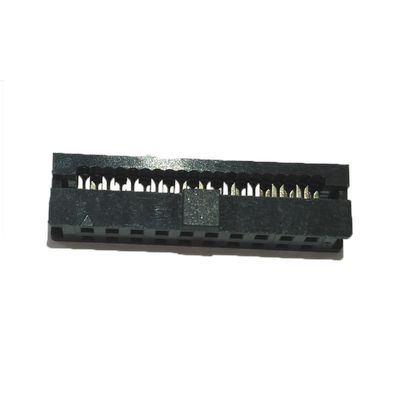

U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON

U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON

    • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
    • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
    • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
    • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
    • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
  • U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON

    Product Details:

    Place of Origin: China
    Brand Name: WCON
    Certification: UL/SGS/ROHS
    Model Number: 5225-XXUPS0BW01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: negotiation
    Packaging Details: Tray
    Delivery Time: 15~25Day
    Payment Terms: T/T
    Supply Ability: 800000pcs
    Contact Now
    Detailed Product Description
    Type: With Bump Type: U Type
    Pitch: 2.0mm Color: Black
    Port: Hong Kong Operation Temperature: ﹣40℃ To +105℃

    IDC Socket U type 2.0 pitch with bump phosphor bronze ROHS WCON.



    Item name: IDC connector
    Product features: contact system has been used to test the automation level of shock, vibration, and temperature cycling also proved their reliability and robustness. The highest temperature insulator can reach 260 degrees Celsius reflow soldering process
    Material: insulation material: nylon 46:UL94V0 contact material: phosphor bronze plating: tin nickel PBT
    Scope of application: to be blocked in the circuit between the circuit or isolated, a bridge of communication so that the current flow of the circuit to achieve a predetermined function. 1 Introduction to PCB power supply and 2 discrete signal wire assembly is connected directly to the PCB



    Current Rating 1.0AMP
    Contact Resistance 20mΩ Max
    Withstand Voltage 500V AC/DC
    Insulation Resistance 1000mΩ Min
    Operation Temperature ﹣40℃ to +105℃
    Contact Material phosphor Bronze
    Contact Plating Au Or Sn over Ni
    Insulator Material PBT+30%GF UL94V-0



    U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON



     WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’Æ’‚ÃÆ’‚°DIPDrawing:IDC Socket 5225-XXUPXXBX01.pdf

    U Type 2.0 Pitch IDC Socket With Bump Phosphor Bronze ROHS WCON
