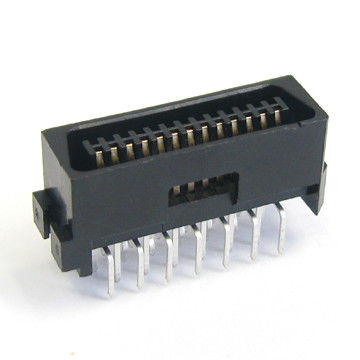

1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn

China WCON ELECTRONICS ( GUANGDONG) CO., LTD certification
China WCON ELECTRONICS ( GUANGDONG) CO., LTD certification
I'm Online Chat Now

1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn

1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn
1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn 1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn 1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn 1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn

Large Image :  1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn

Product Details:

Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 6320D-XXXSDSXPXT01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Detailed Product Description
Rated Current: 0.5AMP Contact Resistance: 35mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance: 500mΩ Min
Operation Temperature: ﹣40℃ To +105℃ Contact Material: Phosphor Bronze
High Light:

scsi drive connector

,

scsi interface connector

1.27mm Straight SCSI Connector 26P PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn



1. Rated Current 0.5AMP

2. Contact Resistance 35mΩ Max

3. Withstand Voltage 500V AC/DC

4. Insulation Resistance 500mΩ min 26 Pin Scsi Connector

5. Operation Temperature ﹣40℃ to +105℃

6. Contact Material Phosphor Bronze

7. Contact Plating Au and Sn Over Ni

8. Insulator Material PBT+30%GF UL94V-0



Product Name: SCSI connector
1. features: the use of a wide range of environmental protection voltage resistant fireproof andmoistureproof Antioxidant electrical conductivity and long service life
2. 26 Pin Scsi Connector material: (UL94V-0) PBT/LCP black +30%GF
3. scope of application: used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection.





1.27mm Straight 26 Pin Scsi Connector PBT 30%GF UL94V-0 Phosphor Bronze Gold Flash/Sn 0



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:SCSI 6320D-XXXSDSXPXT01.pdf
