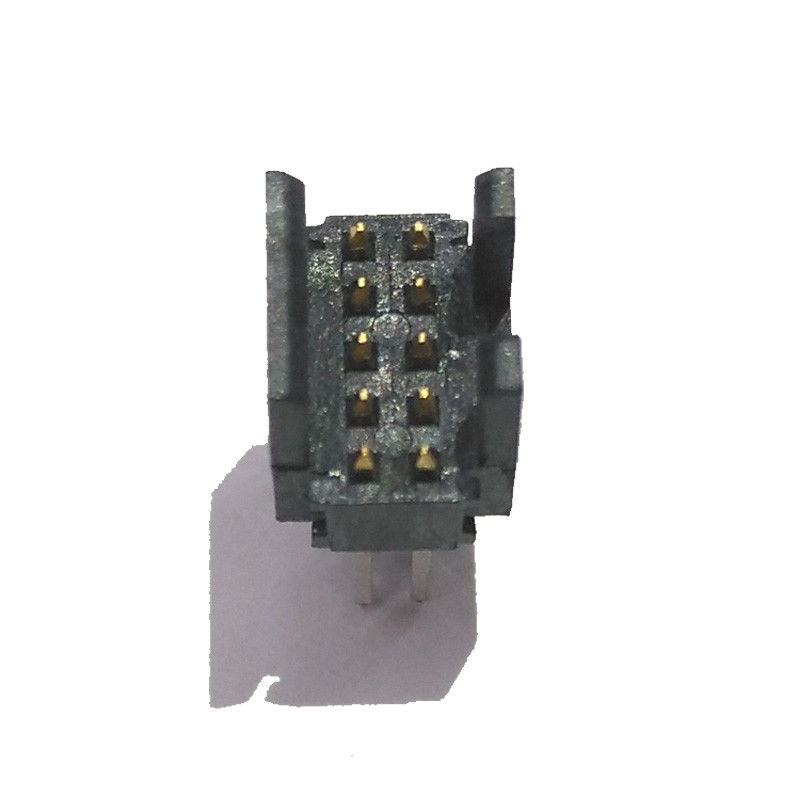

1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS

1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS

  • 1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS
  • 1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS
1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3132-10SXXBK00TX
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: tube packing
Delivery Time: 15~25Day
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Port: Hong Kong Gender: Male
Color: Black Type: Straight
Plastic: LCP Pitch: 1.27mm
High Light:

male header connector

,

pcb header connector



Current Rating 2.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au or Sn over Ni
Insulator Material PA9T +30%GF( UL94V-0 )
CAP Material LCP+30%G.F(UL94V-0)



 1.27 pitch box header S type 10P Straight LCP black Sel.10Au/Sn ROHS.



1.27 Pitch Box Header S Type 10P Straight LCP Black Sel.10Au/Sn ROHS 0



 WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’Æ’‚ÃÆ’‚°DIPDrawing:box header 3132-XXSXXBK00X1.pdf
