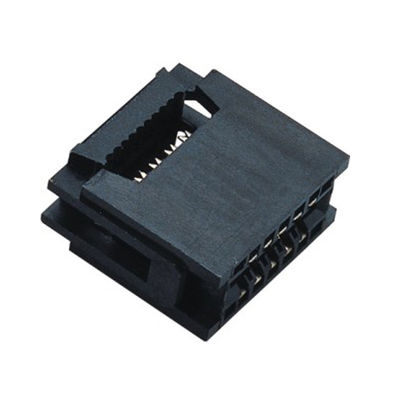

2.54 Mm 10 Pin Header Connector CE Socket PBT Black Phosphor Bronze

2.54 Mm 10 Pin Header Connector CE Socket PBT Black Phosphor Bronze

  • 2.54 Mm 10 Pin Header Connector CE Socket PBT Black Phosphor Bronze
2.54 Mm 10 Pin Header Connector CE Socket PBT Black Phosphor Bronze
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 5260-10BPS0BNA1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tray
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Pitch: 2.54mm Color: Black
Packing: Tray Port: Hongkong
Means Of Exchange: FOB Or FCA Based On Order Amount Current Rating: 1.0A
Highlight:

2.54 Mm PBT Connector

,

PBT 10 pin header connector

,

10 pin header connector

2.54 mm WCON Connector CE Socket 10P PBT Black phosphor bronze sel.1u"Au/Sn.



Current Rating 1.0AMP
Voltage Rating 250V AC,DC
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/minute
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣25℃ to +85℃
Contact Material phosphor Bronze
Contact Plating over Ni
Insulator Material PBT+30%GF UL94V-0



Item name: edge connector
product features: the use of a wide range of environmental protection to improve the production process, easy maintenance, easy to upgrade, improve the flexibility of the design, with high reliability and good contact plug
product material: contact material: phosphor bronze insulation material: plastic
applications: it is widely used in semiconductor packaging and testing, programming, communication equipment, power equipment, medical equipment, mobile phone, wireless, aviation, railways, military radar and other fields



2.54 Mm 10 Pin Header Connector CE Socket PBT Black Phosphor Bronze 0



  1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Card edge 5260-XXBPXXBNX1.pdf
