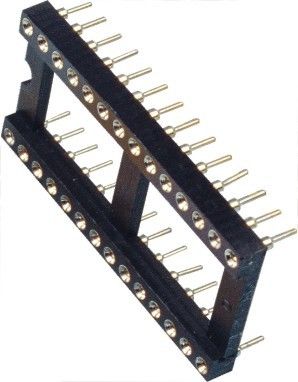

WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board

WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board

  • WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board
  • WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board
  • WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board
  • WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board
WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 7110-30328SS0074T1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube Reel
Delivery Time: 15-25 Working Days
Payment Terms: T/T
Supply Ability: 800000Kpcs
Contact Now
Detailed Product Description
Contactt Resistance: 10mΩ Max Contact Material: Brass CuZn36Pb3(C36000)
Contact Plating: PPS+30%GF(UL94V-0) Product Material: PPS
Product Name: IC Socket
High Light:

single row pin header

,

connector 2.54 mm pitch

2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board



Forces polished steel gauga Φ0.43mm
Insertion 200g Max/Pin, Withdrawal:60g Min/Pin
Operation Temperature ﹣40℃ to +105℃
Sleeve Brass CuZn36Pb3(C36000),Sn over Ni
Contact Clip(4 finger) BeCu(C17200),Au Or Sn over Ni
Insulator Material PPS+30%GF(UL94V-0)
06~18P Insulatora without center bar
20~28P Insulatora with center bar



Item name:2.54mm IC Connector
product features: the use of a wide range of environmental protection, explosion-proof, moisture-proof

product material: (UL94V-0) PPS black +30%GF

scope of application: used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers.



WCON 2.54mm IC Socket 2*14P DIP H=3.0,L=7.43 Row of Pitch 10.16 WCON Connector for PCB board 0

1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30％GF UL94V-0Drawing:IC Socket 7110-303XXSXX074X1.pdf
