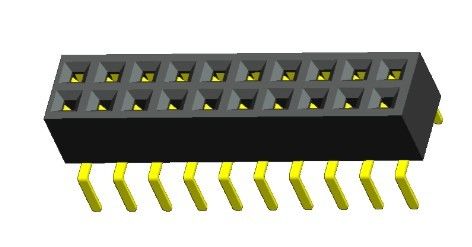

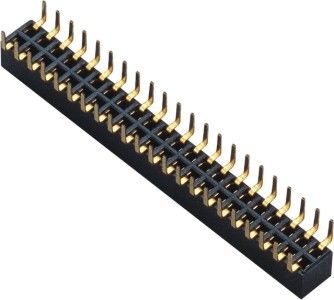

2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T

2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T

  • 2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T
  • 2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T
  • 2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T
2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 2243-222WG0CUT1
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiaiton
Packaging Details: Tube
Delivery Time: 15~25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Pitch: 2.0mm Plastic Hight: H=4.3
Plastic Width: W=4.5 Foot Width: Solder W:6.0(N3)
Plastic Material: High Temperature Material PA9T Port: Hong Kong
High Light:

female pin headers

,

1.27 mm female header

2.0 Female Header Connector Centipede Foot 2*22P Solder W:6.0 Gold Flash





Current Rating 2.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material phosphor Bronze
Contact Plating AU over Ni
Insulator Material PA9T+30%GF UL94V-0





Item name: female connector:

1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.



2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.



3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



2.0 Female Header Connector Centipede Foot 2*22P Solder High temperature material PA9T 0



  1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Female Header 2243-2XXWXXCUNXX.pdf
