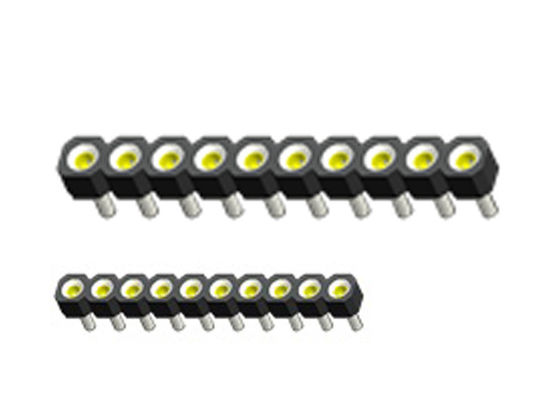

WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS

WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS

  • WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS
  • WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS
  • WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS
  • WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS
WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS
Product Details:
Place of Origin: China
Brand Name: wcon
Certification: UL//SGS/ROHS
Model Number: 3520-301XXSXX083X1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: Tube Tray
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000Kpcs
Contact Now
Detailed Product Description
Insulator Materrial: Polyyester (UL94v-0) Standard: PPS Black+30%GF
Sleeve: Brass CuZn 36pb3(C3600) Contact Clip (4 Finger): Beryllium Copper (C17200)
Mating Pin: ∮0.4 To ∮0.56mm Pitch: 2.54mm
Gender: Female Color: Black
Type: Snigle Row
Highlight:

ROHS single row pin header

,

ROHS connector 2.54 mm pitch

,

length 8.3mm single row pin header

Vibration Resistance Singer Row 2.54 mm Round Pin Header 180°DIP PPS



1. Current Rating 3.0AMP
2. Contact Resistance 10mΩ Max
3. Dielectric Strength Min 1000VRMS
4. Mechanical Life Min 500 cycles
5. Mating Pin ∅0.40 To ∅0.56mm
6. Forces Polished Steel Gauge ∅0.47mm
7. Insertion 200g Max/Pin Withdrawal:60g/pin
8. Operation Temperature -40℃ to +105℃
9.Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
10. Contact Clip(4 Finger) BeCu(C17200)
11. Insulator Material PPS+30%GF(UL94V-0)




Product Name: Michined Female Header connector
1.product features: high contact reliability, vibration resistance, small contact impedance.
2.product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass.
3.scope of application: PCB computer communication cable LED integrated circuit IC power car monitor.



WCON 2.54 mm Round Pin Header Singer Row 180°DIP H=3.0 PPS length 8.3mm black ROHS 0



 1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30ï¼…GF UL94V-0Drawing:Maching Female 3520-301XXSXX083X1.pdf
