|Place of Origin:||Dongguan, Guangdong, China.|
|Model Number:||3615- SXXX-XXXXXR01|
|Minimum Order Quantity:||1000pcs|
|Price:||Negotiable. It depends on the customers' requests.|
|Type:||Socket||No Of Pins:||20/30/40/50/60/70/80/90/100/120/140Pins|
|Contact Plating:||Gold/Tin||Contact Material:||Phosphor Bronze|
|Color:||Black||Keywords:||0.8mm Board To Board Connector|
board to board connector 0.5 mm pitch,
male straight connector

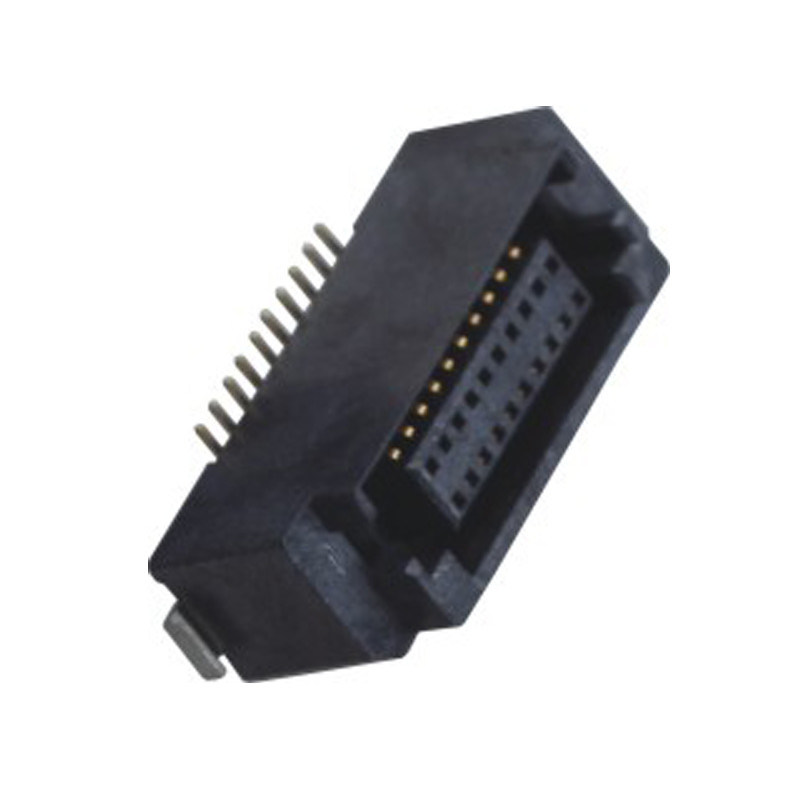

0.8 mm pitch connector board to board smt connector contact plating right angle pcb connector
|Products Issues||Products Descriptions|
|Products Characteristics||1 The first feature is that BTB has a flexible connection and it's easy to install and remove.
2 The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness.
3 In order to meet the requirements of the SMT process, the entire product terminal welding area are strictly required to have good coplanarity.
4 Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact.
5 Contact structure with superb environmental resistance can not only be flexible, but also the use of high contact reliability of the "solid connection" can improve the socket and plug combination force.
|Contact Resistance||70 Milliohm Max|
|Insulation Resistance||1000 Milliohm Min|
|Withstand Voltage||500V AC/Minute|
|Operation Temperature||-40℃ to +105℃|
|Contact Material||Phosphor Bronze|
|Contact Plating||Au Over Ni|
|Insulator Material||Polyester(UL 94V-0)|
|Products Applications||It is mainly used in electric power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.|
