1*12P H=8.5 Female Header Connector Connector 1.27 Mm Pitch Phosphor Bronze

Product Details:

Place of Origin:	China
Brand Name:	WCON
Certification:	UL/CUL/SGS/ROHS
Model Number:	2385-1XXSXXCYNT1

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiaiton
Packaging Details:	Tube Reel
Delivery Time:	15-25Day
Payment Terms:	T/T
Supply Ability:	800000Kpcs

Contact Now

Detailed Product Description

Sample:	Free	Product Name:	Female Header Connector
Gender:	Female	Type:	Board To Board
Operation Temperature:	﹣40℃ To +105℃	Contact Material:	Phosphor Bronze
High Light:	female pin headers , 1.27 mm female header

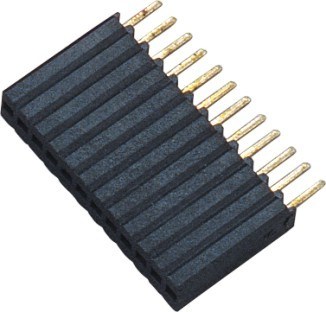

1.27mm 1*12P H=8.5 Female Header Connector phosphor Bronze

1. Current Rating	1.0AMP
2. Contact Resistance	20mΩ Max
3. Withstand Voltage	500V AC/DC
4. Insulation Resistance	1000mΩ Min
5. Operation Temperature	﹣40℃ to +105℃
Contact Material	phosphor Bronze
Contact Plating	Au over Ni
Insulator Material	PA9T+30%GF UL94V-0

Product Name: female connector

1.features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity

2.material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0

3.scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
