High End Precision Connectors and Customer Solution Service Provider
Sales & Support:
Product Details:
Payment & Shipping Terms:
|
| Application Field: | Circuit Or Isolated Bridge Of Communication | Matching Products: | Ejector Header |
|---|---|---|---|
| Withstand Voltage: | 1000V AC/DC | Insulation Resistance: | 1000mΩ Min |
| Operation Temperature: | ﹣40℃ To +105℃ | Contact Material: | Brass Phosphor Bronze |
| High Light: | idc female connector,idc ribbon connector |
||

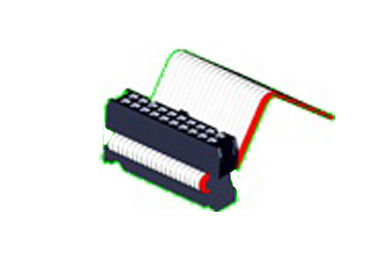

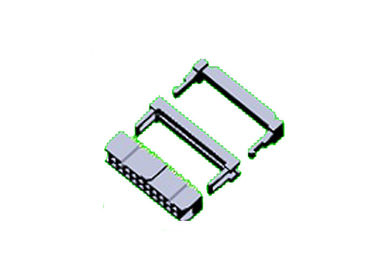

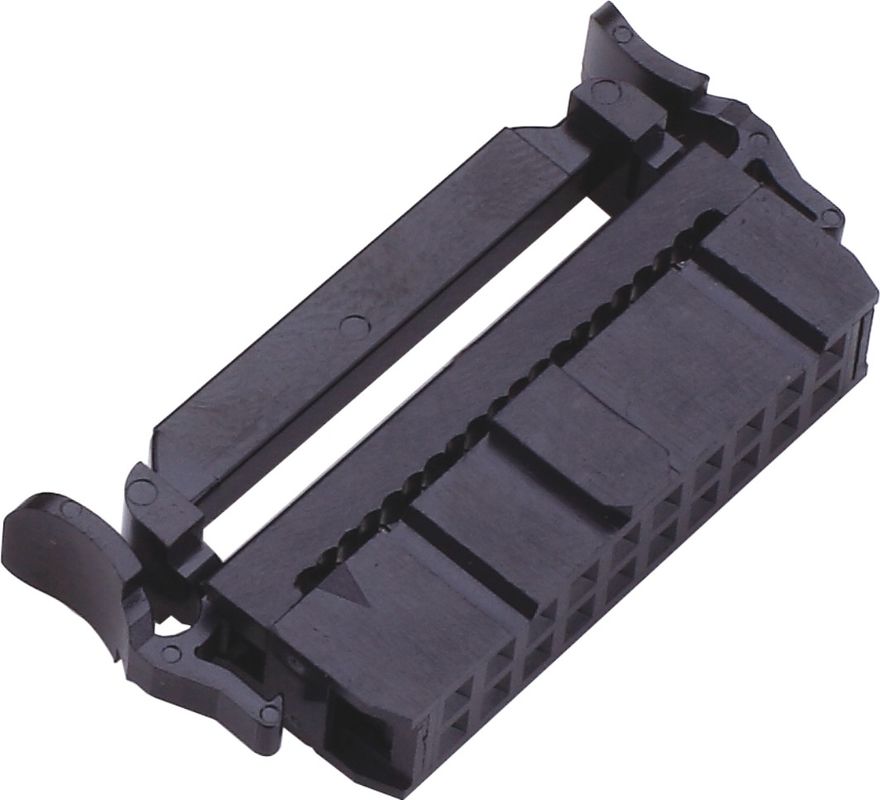

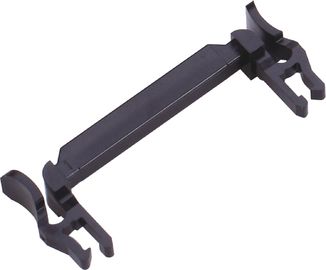

2.54mm Double row idc connector Connector With SR One IDC Socket Side Contact Brass Sel Au/Sn 06~64P
1. Operation Temperature ﹣40℃ to +105℃
2. Contact Material phosphor Bronze
3. Contact Plating Au over Ni
4. Insulator Material PBT+30%GF UL94V-0
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Product Name: 2.54MM IDC connector | ||
| 1.Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process | ||
| 2.Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT | ||
| 3.Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the |
Drawing:IDC 5212-XXYBXXBX01.pdf
