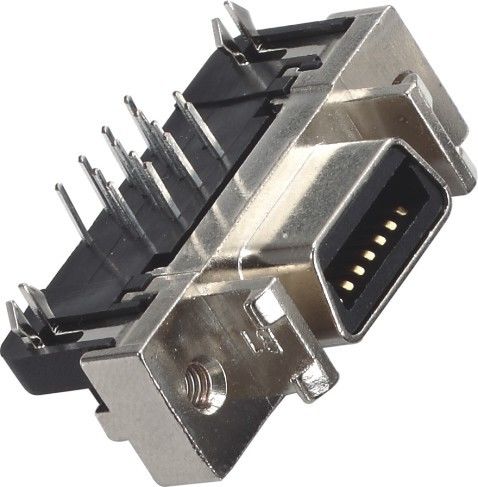

Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon

Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon

  • Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon
  • Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon
  • Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon
  • Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon
Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 6321-XXXRDSXMWA02
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Origin: China Gender: Female
Type: I/O Connector Rated Current 1AMP Contact Resistance: 35mΩ Max
Pitch: 1.27
Highlight:

right angle connector

,

scsi drive connector

1.27mm 14~50P SCSI Connector Cen Type Female DIP Zinc Alloy Transverse harpoon​



Current Rating 3.0AMP
Contact Resistance 35mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 500MΩ Min
Operation Temperature -40°C to+105°C
Contact Material Phosphor Bronze
Contact Plating Au  And Sn over Ni
Shell Material Zinc Alloy
Shell Plating Ni 100u''
Fixing Material Phosphor Bronze
Fixing  Plating Sn Ocer Ni
Housing Material PBT+30% UL94V-0
Cover Material PBT+30% UL94V-0





Product Name: SCSI connector

1. features: the use of a wide range of environmental protection voltage resistant fireproof andmoistureproof Antioxidant electrical conductivity and long service life

2. material: (UL94V-0) PBT/LCP black +30%GF

3. scope of application: used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection.



Female DIP Computer Pin Connectors Cen Type 1.27mm 14P Zinc Alloy Transverse harpoon 0



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:SCSI 6321-XXXRDSXMWA02.pdf

Tag:

scsi interface connector,

scsi drive connector,

right angle connector
