| Application Field: | Automotive Electronics, Solar Photovoltaic | Gender: | Male |
|---|---|---|---|
| Product Type: | I/O Connector | Rated Current 1AMP Contact Resistance: | 35mΩ Max |
| Pitch: | 1.27 | ||
| Highlight: | right angle connector,scsi drive connector |
||

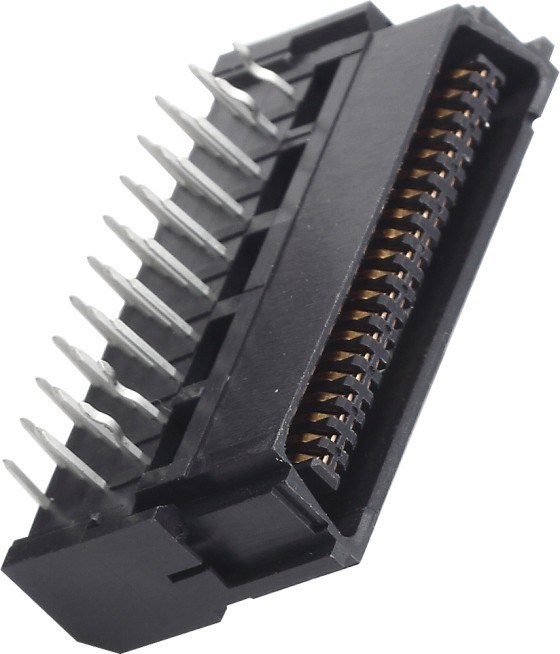

1.27mm D Type Male Right Angle SCSI Connector PBT Phosphor Bronze 40P pcb connector
| 1. Current Rating: 0.5/Contact Scsi Drive Connector |
| 2. Voltage Rating: 250V AC |
| 3. Contact Resistance: 35milliohm Max |
| 4. Withstand Voltage :500V AC/DC |
| 5. Insulation Resistance: 500Megohm Min |
| 6. Operation Temperature: -20°C to +105°C |
| Product Name: SCSI connector | |||
| 1. Scsi Drive Connector features: the use of a wide range of environmental protection voltage resistant fireproof andmoistureproof Antioxidant electrical conductivity and long service life | |||
| 2. material: (UL94V-0) PBT/LCP black +30%GF | |||
| 3. scope of application: used for electronic and electrical appliances, electronic communication, industrial and power control, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection. |
