| Current Rating: | 1.0AMP | Contact Resistance: | 20mΩ Max |
|---|---|---|---|
| Withstand Voltage: | 500V AC/DC | Insulation Resistance: | 1000mΩ Min |
| Operation Temperature: | ﹣40℃ To +105℃ | Contact Material: | Brass |
| High Light: | 2mm header connector,pin header 2mm |
||
| Product Name: Latch Header 1.27mm ejector header | ||
| 1. features: high temperature resistance, high voltage electrical conductivity | ||
| 2. material: PA9T/LCP/PBT plating surface treatment: gold or tin | ||
| 3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current |
Drawing:Ejector Header 3230-XXRXXBSX1.pdf

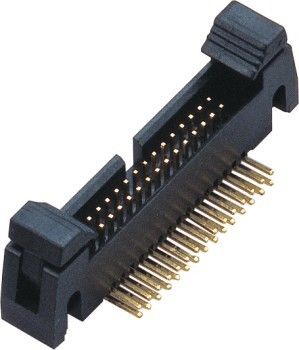

40P PA9T Black UL94V-0 Latch Header 1.27mm ejector header Right Angle short bube packing
| 1. Current Rating | 1.0AMP |
| 2. Contact Resistance | 20mΩ Max |
| 3. Withstand Voltage | 500V AC/DC |
| 4. Insulation Resistance | 1000mΩ Min |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Contact Material | Brass |
| 7. Contact Plating | AU Sn over Ni |
| 8. Insulator Material | PA9T+33％GF UL94V-0 |
| Since its foundation, the company sticks to the principle of specialization and tries its best to Supply customers with products of high quality at competitive prices, regarding .From the development and design of metal and plastic molds, molds making, precision high-speed punch molding, precise plastic injection mol ding and then automatic assembly. |
|||||||||
| The company has a strong design and development team ,access to more than 38 technical patents and 6 invention patents. Dongguan factory laboratory have various testing equipment more than 30 sets, that is UL-authorized witness test laboratory, with the UL authorize number:113185001. At present, Our laboratory is applying the for national test laboratory accreditation. |
|||||||||
| The company also focused on creating their Dual-brand Strategy "WCON“ and "WCONTEK ", The WCON obtained a trademark registration in the world more than 50 and regions, and “WC ONTEK” obtained the trademark registration in EU already. At present, WCON have obtained “G uangdong Famous Brand” and "Guangdong Customer Satisfaction Brand” honor already. |
