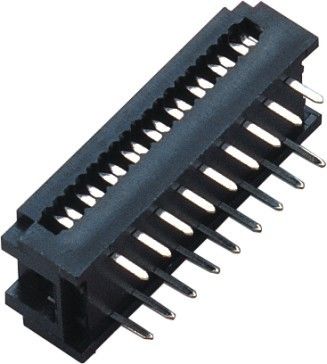

Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS

Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS

  • Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS
  • Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS
  • Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS
  • Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS
Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 5350-XXBXXB0X
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE Bag
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000Kpcs
Contact Now
Detailed Product Description
Current Rating: 3.0AMP Contact Resistance: 20mΩ Max
Withstand Voltage: 1000V AC/DC Port: Hong Kong
Color: Black Plastic: PBT
Pitch: 2.54*7.62mm Tpye: DIP Plug
Highlight:

dip socket

,

20 pin dip socket

2.54*7.62mm 2*9P DIP Plug  Connector PBT 30%GF UL94V-0 Brass Sel Au/Ni



Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au Or Sn over Ni
Insulator Material PBT+30%GF UL94V-0





Product Name: DIP connector

1. Product features: high voltage high temperature mechanical properties of applicable environment temperature

2. Product material: material terminal material: Bronze electronic plating: gold plated or tin insulator material: Polyester UL94V-0 plastic PBT

3. Scope of application: cable PCB board VGA/SVGA card or BIOS chip





Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS 0



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:DIP 5350-XXBXXB0X.pdf



Our Honor
Dongguan WCON Hardware Electronics Co., Ltd located at Boye Ind. Park, ZhongnanZhong Road., Shangsha District, Chang'an Town, Dongguan City, Guangdong province, Who honored "National High-Tech Enterprise" "National Well-known trademark Enterprise""Guangdong Famous brand enterprise" "Guangdong Brand-name product enterprise",Dongguan "Observing contract & Valuing credit" enterprise, Member of The CECA-Connectors branch" and "Dongguan hardware Molding association", "The IPC- international electronic industrial connection Association member", Chang'an "Large Private Taxpayer" and "Outstanding Private Enterprise".

Brass Sel Au/Ni 2*9P DIP Plug Connector 2.54*7.62mm PBT 30%GF UL94V-0 ROHS 2
