| Rated Current: | 10AMP | Rated Voltage: | 300V |
|---|---|---|---|
| Contact Resistance: | 15 MΩ | Withstand Voltage: | 2000V AC/DC |
| Sulation Resistance: | 500MΩ Min DC500V | Operation Temperature: | ﹣40℃ To +105℃ |
| High Light: | plug in terminal block connector,pcb terminal block connector |
||

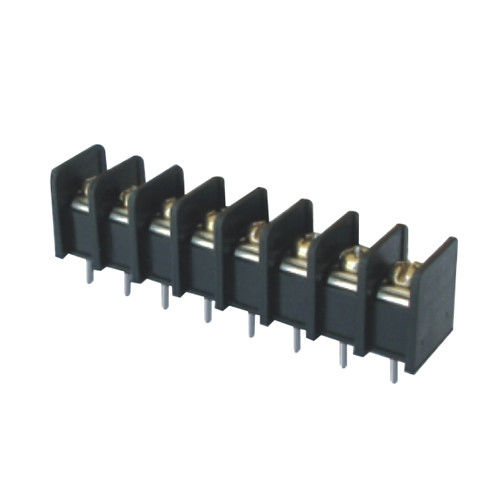

1*8P 7.62mm DIP Berrieer Terminal Blocks WCON Connector PA66 25％GF UL94V-0 Brass SN Plated
| 1. Rated Current | 10AMP |
| 2. Rated Voltage | 300V |
| 3. Contact Resistance | 15 mΩ |
| 4. Withstand Voltage | 2000V AC/DC |
| 5. Sulation Resistance | 500MΩ Min DC500V |
| 6. Operation Temperature | ﹣40℃ to +105℃ |
| 7. Torque value | 0.5N.m |
| 8. Operation Temperature | ﹣40℃ to +105℃ |
| 9. Storage Temperature | ﹣10℃ to +40℃ |
| 10. Insulator Material | PA66+25%GF(UL94V-0) |
| 11. Terminal Material | Brass |
| 12. Terminal Platig | Sn Plated Over Nickel |
| 13. Screw material | C1018A |
| 14. Screw Plated | Ni Plating |
| Product Name: 7.62mm terminal | ||
| 1. Product features: switching high frequency high voltage insulation life long seismic | ||
| 2. Product material: copper alloy, or copper alloy, electroplating nickel, or nickel alloy | ||
| 3. Application: mainly used in communications, lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency converter, the elevator industry (less), air conditioning. |
