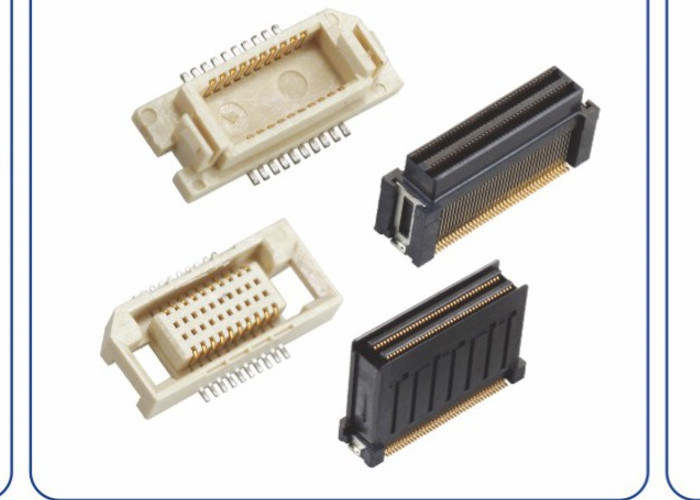

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.

  • 0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.
  • 0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.
0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.
Product Details:
Place of Origin: Dongguan, Guangdong, China.
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 3660-X XXX-XXXSXR01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable. It depends on the customers' requests.
Packaging Details: Reel
Delivery Time: 15-25Days
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Metal Material: Phosphor Bronze Insulator Material: Polyester
No Of Pins: 20/30/40/50/60/70/80/90/100/120Pins Pitch: 0.635mm
Insulator Height: 4/5/6/7/8/9/10/12.4mm Contact Plating: Full Gold
Package Ways: Tape&Reel+Cap
High Light:

500V DC Board to Board Connector

,

0.8mm Pitch Board to Board Connector

,

500V AC board to board connectors

0.635mm, Board to Board, Mating, Plug/Socket, Black, Phosphor Bronze.





3660-SXXX-040XXR01.pdf

3660-PXXX-XXXXXR01.pdf

3660-SXXX-XXXXXR01.pdf

3660-PXXX-XXXXXR01.pdf





Products Issues Products Descriptions
Products Characteristics

1, It is a flexible connection and easy to install. Removable and convenient.

2, The board-to-board connector ultra-low height to achieve the purpose of thinning the body thickness.
3, In order to meet the requirements in the SMT process, the entire product terminal welding area are strictly required to have good coplanarity.
4, Board-to-board connectors can be simple construction of machine circuit design. By setting up an insulating wall on the bottom of the connector so that the PCB board alignment and metal terminals can be wired on the bottom of the connector without contact.
5, Contact structure with superb environmental resistance can not only be flexible, but also can improve the combination of socket and plug combination force.
Products Specifications Current Rating 0.5AMP
Contact Resistance 40 Milliohm Max
Insulation Resistance 100 Milliohm Min
Withstand Voltage 250V AC/Minute
Operation Temperature -55℃ to+85℃
Contact Material Phosphor Bronze
Contact Plating Au Over Ni
Insulator Material Polyester(UL94V-0)
Standard LCP or PPS +30%GF(UL94V-0)
Products Applications

Carrier systems.

Communication networks.
Financial manufacturing.
Elevators.
Industrial automation.
Medical equipment.
Office equipment.
Household appliances.
Military manufacturing industries.
