| Place of Origin: | Humen Town, Dongguan City, China. |
| Brand Name: | WCON |
| Certification: | UL/SGS/ROHS/IATF/ISO/QC/DUNS |
| Model Number: | 2171-2XXMG0CUNT1 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable. It depends on the customers' requests. |
| Packaging Details: | Tube Package |
| Delivery Time: | 15~25 Days |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Connector Type: | Female Pin Header Connector With Post | Plastic Material: | PA 9T |
|---|---|---|---|
| Metal Material: | Phosphorous Brass | Plastic Height: | H=7.1 Mm |
| Plastic Width: | W=5.0 Mm | Running Temperature Arrange: | ﹣40℃ To +105℃ |
| No. Of Pin: | 12 Pins | ||
| High Light: | SMT 2.54 mm female header,1000V 2.54 mm female header,2.54mm pin header connector female |
||

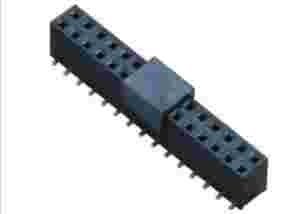

SMT type Female Header 2.54 Pitch Double Row H=7.1 Gold Flash ROHS.
| Product Issues | Product Details Descriptions | ||||||||||
| Product Materials | Material of Plastic Part: PA 9T | Material of Metal Part:Phosphorous Brass | |||||||||
| Product Features | Female Header connector, a kind of connector is widely used in electronics, electrical appliances, instruments, general-purpose connection device, mainly to play the role of current or signal transmission. It is usually used in conjunction with a row of pins to form a board-to-board connection. It is of wide range use and with environmental protection, high temperature resistance, fire resistance as well as oxidation resistance. | ||||||||||
| Product Specifications | Current Rating | 3.0AMP | |||||||||
| Contact Plating | AU over Ni | ||||||||||
| Contact Resistance | 20mΩ Max | ||||||||||
| Withstand Voltage | 1000V AC/DC | ||||||||||
| Insulation Resistance | 1000mΩ Min | ||||||||||
| Insulator Material | PA9T+30％GF UL94V-0 | ||||||||||
| Operation Temperature | ﹣40℃ to +105℃ | ||||||||||
| Product Application |
|
||||||||||
