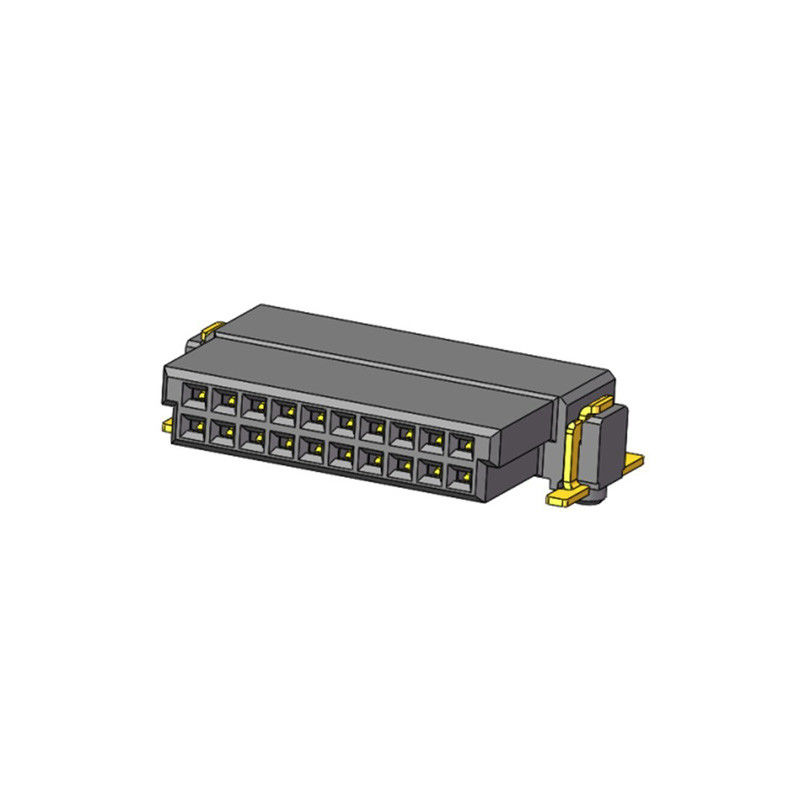

WCON Female Right Angle Board To Board Connector Smt Type Lcp Black 3910-s

WCON Female Right Angle Board To Board Connector Smt Type Lcp Black 3910-s

  • WCON Female Right Angle Board To Board Connector Smt Type Lcp Black 3910-s
WCON Female Right Angle Board To Board Connector Smt Type Lcp Black 3910-s
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3910-SXXX-096ZXXWR1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Mating: 3910-S Type: Female
Plastic Color: LCP Black Electroplated Material: Gold Flash Tin
Packing: Reel
High Light:

male straight connector

,

right angle board to board connector

Product name:

WCON Right Angle SMT Type LCP Black Sn over Ni 1.27mm Female board to board SDC Connector



Product parameter:

Current Rating: 1.0AMP
Contact Resistance: 25mΩ Max
Insulation Resistance: 1000MΩ Min
Withstand Voltage: 500V AC/Minute
Operation Temperature: ﹣55℃ to +125℃
Contact Material: Phosphor Bronze
Contact plating: Sn over Ni
Insulator Material: LCP


product features:

 the use of a wide range of environmental protection,



applications:

financial manufacturing, elevators, industrial automation,





Product drawing:



WCON Female Right Angle Board To Board Connector Smt Type Lcp Black 3910-s 0





1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-03910-SXXX-096ZXXWR1.pdf
