Product Details:
Payment & Shipping Terms:
|
| Insulator Material: | PA9T+G.F,UL94V-0 | Terminal Material: | Copper Alloy |
|---|---|---|---|
| Terminal Plating: | Au/Sn Plated Over Nickel | Type: | A TYPE |
| Gender: | Male | Plastic: | PA9T |

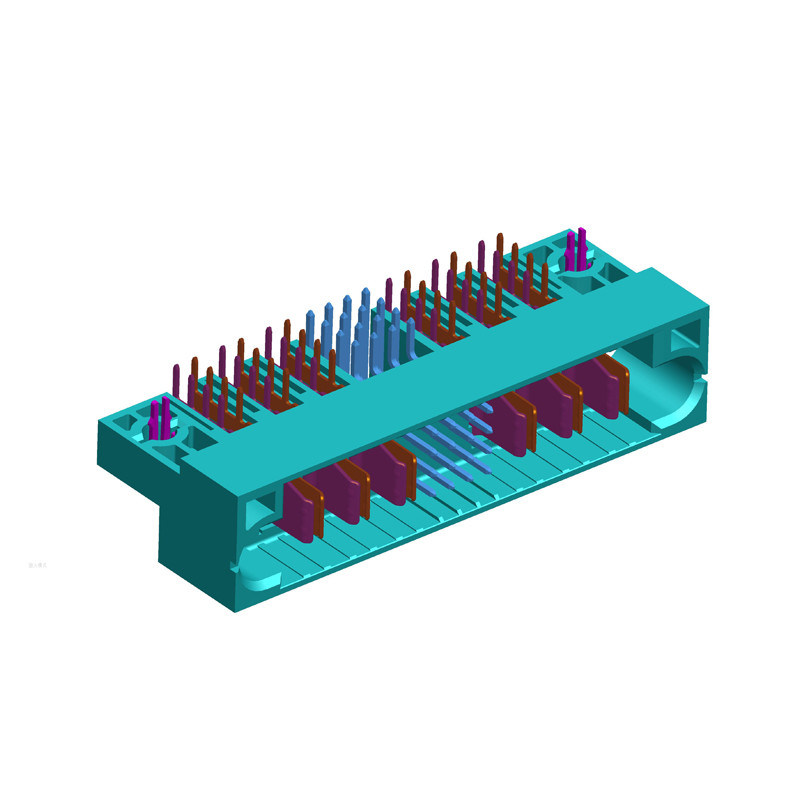

Power+Signal PSP A Type Right angel Male(3+16+3) PA9T BK Sel.30U"Au/Matte Sn,Tray,NW:21.997g.
| Insulator Material | PA9T+G.F,UL94V-0 |
| Terminal Material | Copper Alloy |
| Terminal Plating | Au/Sn Plated Over Nickel |
| Rated Voltage | 50V |
| Rated Current | Power 30A Signl 2.5A |
| Contact Resistance | Power 0.7MΩ Max Signal 2010mΩ Max |
| Insulation Resistance | DC500V PPWER 10000MΩ Min Signal 500MΩ Min |
| Insulation Withstand Voltage | Power 2500VAC/1min Signal 1000VAC/1min |
| Durability | 200 cycling |
| Power+Signal PSP A Type Right angel Male | |
| 1.PSP mixed power and signal distribution connectors designed to support high power applications, it also has the power and signal contacts, capable of simultaneous power allocation and power control in a connector | |
| 2.PSP mixed power and signal distribution connector can provide 1-20 power contacts and 0-148 signal contacts. The rated current capacity of each power supply contact is 48A; | |
| 3. power supply contacts and signal contacts can provide two levels of sequential matching, which can support up to three levels of power supply and signal sequence matching. |
Drawing:PMRXXA-XX-XXX-XXAMX1.pdf
| Since its foundation, the company sticks to the principle of specialization and tries its best to Supply customers with products of high quality at competitive prices, regarding .From the development and design of metal and plastic molds, molds making, precision high-speed punch molding, precise plastic injection mol ding and then automatic assembly. |
|||||||||
| The company has a strong design and development team ,access to more than 38 technical patents and 6 invention patents. Dongguan factory laboratory have various testing equipment more than 30 sets, that is UL-authorized witness test laboratory, with the UL authorize number:113185001. At present, Our laboratory is applying the for national test laboratory accreditation. |
|||||||||
| The company also focused on creating their Dual-brand Strategy "WCON“ and "WCONTEK ", The WCON obtained a trademark registration in the world more than 50 and regions, and “WC ONTEK” obtained the trademark registration in EU already. At present, WCON have obtained “G uangdong Famous Brand” and "Guangdong Customer Satisfaction Brand” honor already. |
