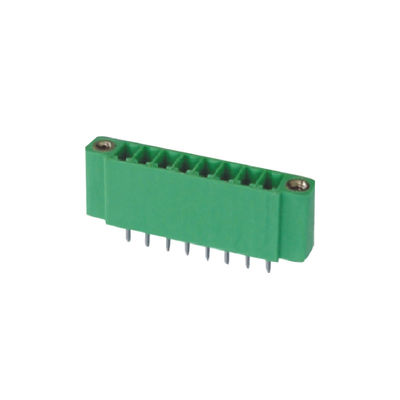

PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire

PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire

  • PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire
  • PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire
PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: PM508-1SXXASM2
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiaiton
Packaging Details: PE packing
Delivery Time: 15~25Day
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Type: With Lock Material: PA66
SampleSample Cycle: About 1 Weeks Pitch: 5.08mm
High Light:

pluggable terminal block connector

,

pcb terminal block connector

5.08mm Pluggable Terminal Block feed through terminal block with lock



The function of the terminal
The terminal is to convenient connection wire and application, it is actually a sealed in plastic insulation inside the metal sheet, both ends can be inserted into the wire hole, a screw for fastening or loosening, such as two wires, sometimes need to be connected, and sometimes need to be disconnected, then you can use the terminal they are connected, and can be disconnected at any time, without having to weld them together or twisted together, very convenient. It is also suitable for large number of conductor interconnection. In the power industry, there are special terminal blocks and terminal boxes, all of which are terminal blocks, single-layer, double-layer, current, voltage, ordinary, and so on. A certain area of compression is designed to ensure reliable contact and to ensure that a sufficient amount of current can be passed.



PA66 Pluggable Feed Through Terminal Block With Lock 5.08mm For Connection Wire 0



Current  Volage 300V
Rated Cunnernt 18A
Pitch 5.08

WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:PM508-1SXXASM2.pdf
