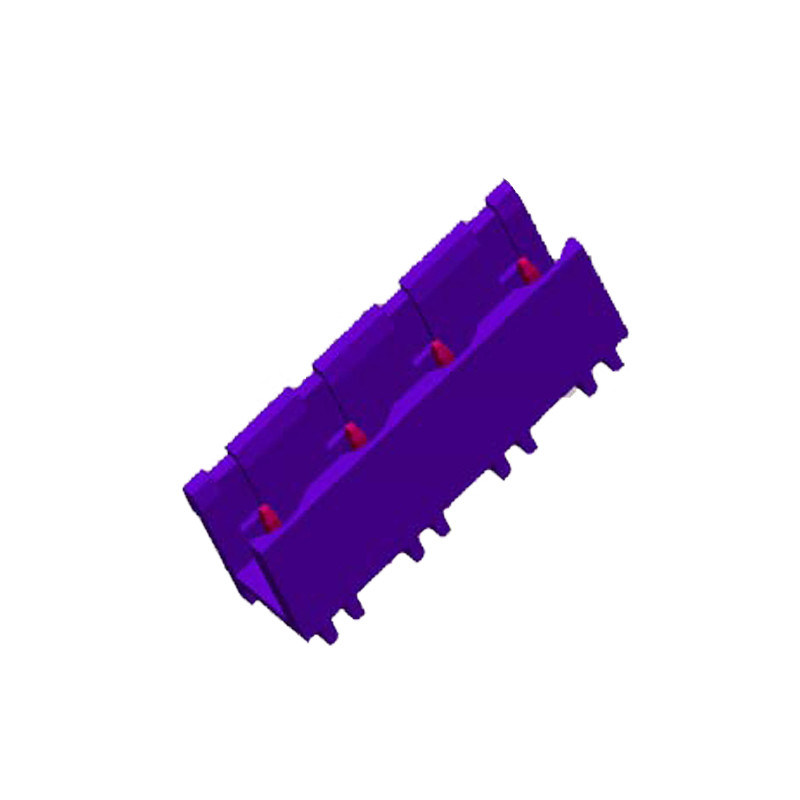

7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max

7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max

  • 7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max
  • 7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max
7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: PM750-1SXXASM3
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiaiton
Packaging Details: PE packing
Delivery Time: 15~25Day
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Rated Current: 18.0AMP Contact Resistance: 8.0 Millohm Max
Withstand Voltage: 2000v Ac/dc Insulation Resistance: 1000Megohm Min
High Light:

pcb terminal block connector

,

pluggable terminal block connector

5.08 Pluggable Terminal Block Male 1*10P Straight PA66 Green L=14.0/3.9 Open Type Without flange Matte Sn



1. Operation Temperature:-40℃+105℃

2. Housing Material:PA66+30%GF(UL94V-0)

3. Contact Material:Brass

4. Termianl Plating:Matte Tin Plated Over Nickel



Item name: terminal
Product features: high switching frequency, high insulation, long service life, high reliability
Material: copper alloy, copper alloy, nickel or nickel alloy
Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning.



7.5 Screw Terminal Block Connector 1000Megohm min 8.0 millohm max 0

WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:PM750-1SXXASM3.pdf
