| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | UL/SGS/ROHS |
| Model Number: | PM508-1SXXASM3 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiaiton |
| Packaging Details: | PE packing |
| Delivery Time: | 15~25Day |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Type: | Open Type | Electroplate: | Matte Sn |
|---|---|---|---|
| Working Temperature: | -40℃+105℃ | Delivery Way: | DHL UPS TNT FEDEX |
| High Light: | pcb terminal block connector,pluggable terminal block connector |
||

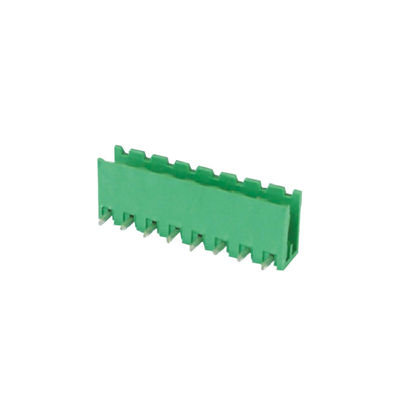

5.08 Pluggable Terminal Block Male 1*10P Straight PA66 Green L=14.0/3.9 Open Type Without flange Matte Sn
Terminal contact body
The needle socket is the general name of the contact body, which is divided into welding, pressing and winding and so on, which can be used to connect the circuit. The pin jack is the key element of the electrical connector, which directly affects the reliability of the electrical connector. Pin holes are mostly machined by elastic copper alloy material with good conductivity, and silver plated surface is used to achieve small contact resistance and corrosion resistance.
The structure is resistant to environment, bayonet (fast) connection, multiple keys (anti plug), a contact body and a wire crimping connection (single off for troubleshooting). Enclosure with shielding environmental protection certificate 360 degree electromagnetic interference shielding ability.
| How to purchase your products? | ||||||||
| We take the BTO (Build-To-Order) mode, all customer formal purchase order bases on their requirements, and delivery on payment (T/T). | ||||||||
| How can I get a sample from you? | ||||||||
| We can provide about 20pcs samples for free, but express(DHL/FedEx/UPS/TNT/S.F etc.) freight collecting... |
