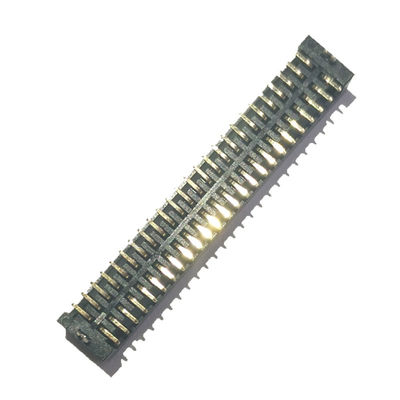

1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating

1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating

  • 1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating
  • 1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating
  • 1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating
1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3131-XXMG0BK00R3
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Reel packing
Delivery Time: 15~25 Days
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Color: Black Plastic: PA9T
TYPE: SMT Plastic High: H=5.7
Port: Hong Kong
High Light:

male header connector

,

pcb header connector

1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating.





1.Current Rating 1AMP
2.Contact Resistance 20mΩ Max
3.Withstand Voltage 500V AC/DC
4.Insulation Resistance 1000mΩ Min
5.Operation Temperature ﹣40℃ to +105℃
6.Contact Material Brass
7.Contact Plating Au Or Sn over Ni
8.Insulator Material PA9T +30%GF( UL94V-0 )
6 To 8 Pin No "D" Configuration





Drawings



1.27mm Box Header, SMT Type, with Fork&Cap, H=5.7mm, Gold Flash Plating 0
