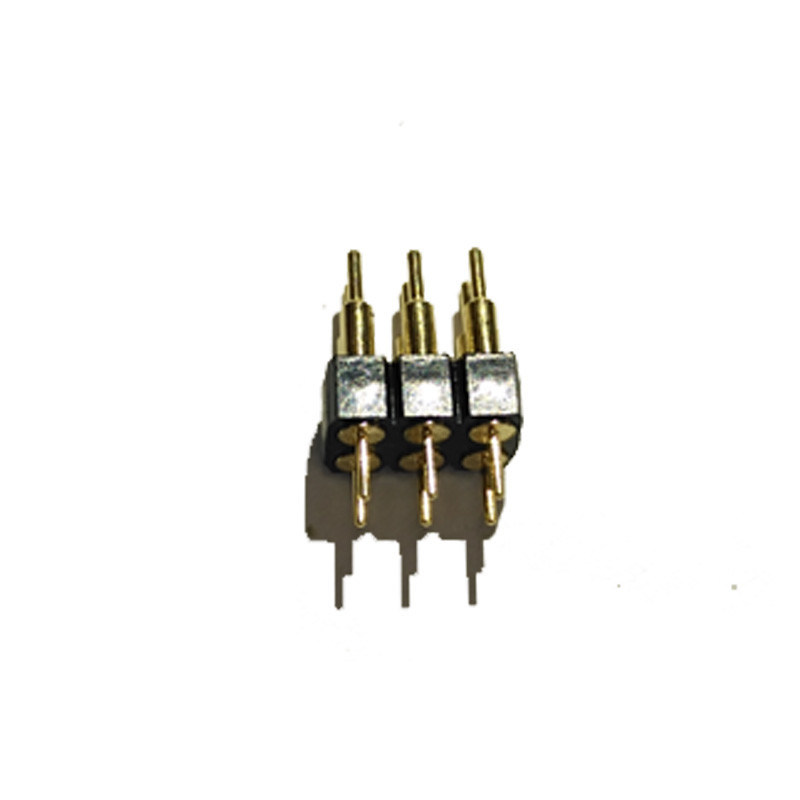

WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash

WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash

  • WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash
  • WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash
  • WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash
WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 3510-302XXSG0124A1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: tray packing
Delivery Time: 15~25 Working Days
Payment Terms: T/T
Supply Ability: 800000pcs
Contact Now
Detailed Product Description
Gender: Male Pitch: 2.54mm
Type: Round Pin Palstic: PPS
Color: Black Port: Hong Kong
Highlight:

male pin header

,

dual row header connector

1. Current Rating 3.0AMP
2. Contact Resistance 10mΩ Max
3. Dielectric Strength Min 1000VRMS
4. Mechanical Life Min 500 cycles
5. Operation Temperature -40℃ to +105℃
6. Sleeve Brass CuZn36Pb3(C36000)
7. Contact Plating Au over Ni
8. Contact Pin ∅0.47mm
9. Insulator Material PPS+30%GF(UL94V-0)



Product Name: Round pin connector
product features: high contact reliability, vibration resistance, small contact impedance
product material: insulation part PPS, PA46 or PA6T plastic insulation part of the fire rating: UL94V-0 contact part: Brass
scope of application: PCB computer communication cable LED integrated circuit IC power car monitor



2.54mm Machined Pin Header Dual row PPS BK H=3.0 StraightGold Flash.



WCON 2.54mm Machined Pin Header Dual row PPS BK H=3.0 Straight Gold Flash 0



  WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ÃÆ’‚°DIPDrawing:machined pin header 3510-302XXSXX124X1.pdf.



Tag:

connector 2.54 mm pitch,

1.27 mm female header,

single row pin header
