High End Precision Connectors and Customer Solution Service Provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | WCON |
| Certification: | UL/SGS/ROHS |
| Model Number: | WF3697-WRXXW01 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | bag packing |
| Delivery Time: | 15~25Day |
| Payment Terms: | T/T |
| Supply Ability: | 800000pcs |
| Port: | Hong Kong | Type: | Sn Plated |
|---|---|---|---|
| Pitch: | 3.96mm | Operation Temperature: | ﹣25℃ To +85℃ |
| Current Rating: | 7.0AMP | ||
| High Light: | circuit board wire connectors,1.25 mm Pitch Connector |
||
| Current Rating | 7.0AMP |
| Contactt Resistance | 20mΩ Max |
| Withstand Voltage | 1000V AC minute |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣25℃ to +85℃ |
| Contact Material | Brass |
| Contact Plating | Sn over Ni |
| Insulator Material | Polyester (UL94V-0) |
| Standard | PA66 |
| Item name: Wafer connector | ||||||||
| product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design | ||||||||
| product material: (UL94V-0) PA9T, PA6T, PA46, PA66, etc. | ||||||||
| scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission. |

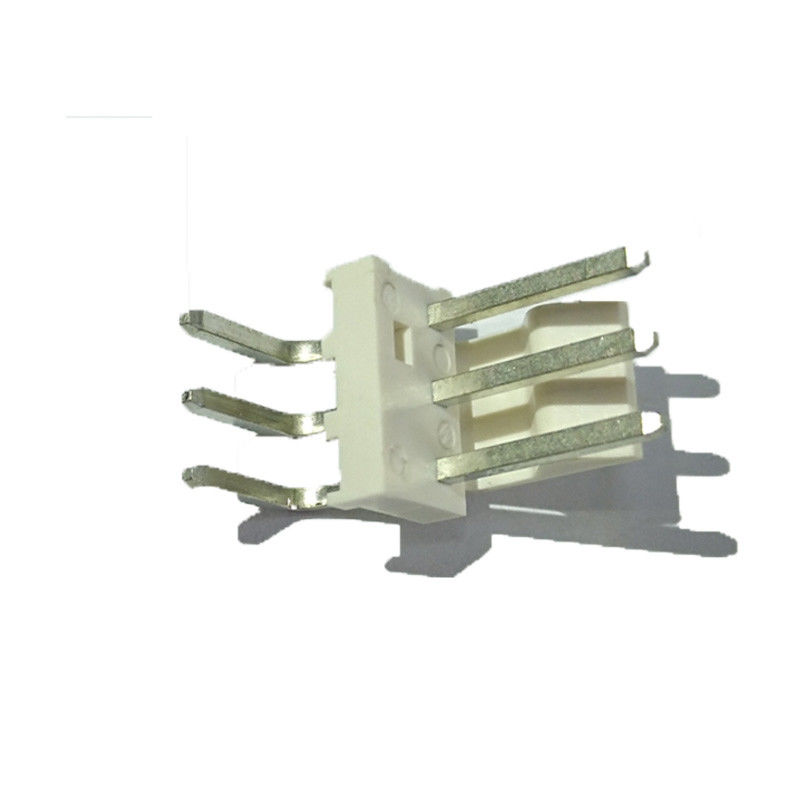

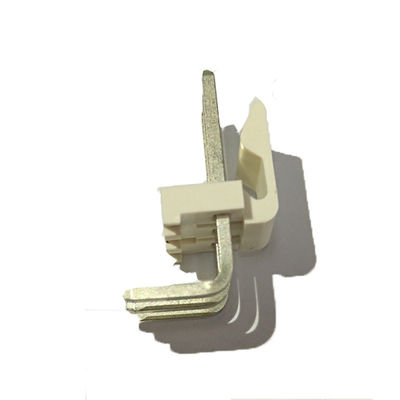

Wihte Wafer VH3.96 Ritght angle type1 PA66 SN Plated wire to board connector.
Drawing:Wafer WF3967-WRXXW0X.pdf
