2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End

  • 2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End
2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: WF2547-1WSXXXXXX1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Reel Tray Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Plastic Material: PA66 UL94V-0 Application: Home Appliances / Automotive Equipments
Pitch: 2.54mm Standard: PA66
Insulator Material: Polyester(UL94V-0) Contact Plating: Sn Over Ni
High Light:

circuit board wire connectors

,

1.25 mm Pitch Connector

product details



2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0technical parameter
Rated Current 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣25℃ to +85℃
Pin Material Brass
Contact Plating Sn over Ni
Insulator Material Polyester(UL94V-0)
Standard PA66





2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Feature description
Item name: Wafer connector
1. product features: it makes the design and production process more convenient, more flexible, reducing production and maintenance costs, easy maintenance, easy to upgrade, improve design flexibility
2. product material: (UL94V-0) PA9T, PA6T, PA46, PA66 and so on

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Drawing
undefined
2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Instructions
Wafer connector is mainly used for board to line connection, there is a pair of line ends Housing and terminals, the plate end of the Wafer insert PCB board, line end assembled good electronic line, and the plate end of Wafer pairs inserted into, forming a plate to line connection

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Packing list
Boxed tube

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Applications / applications
Application: apply to computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Product picture

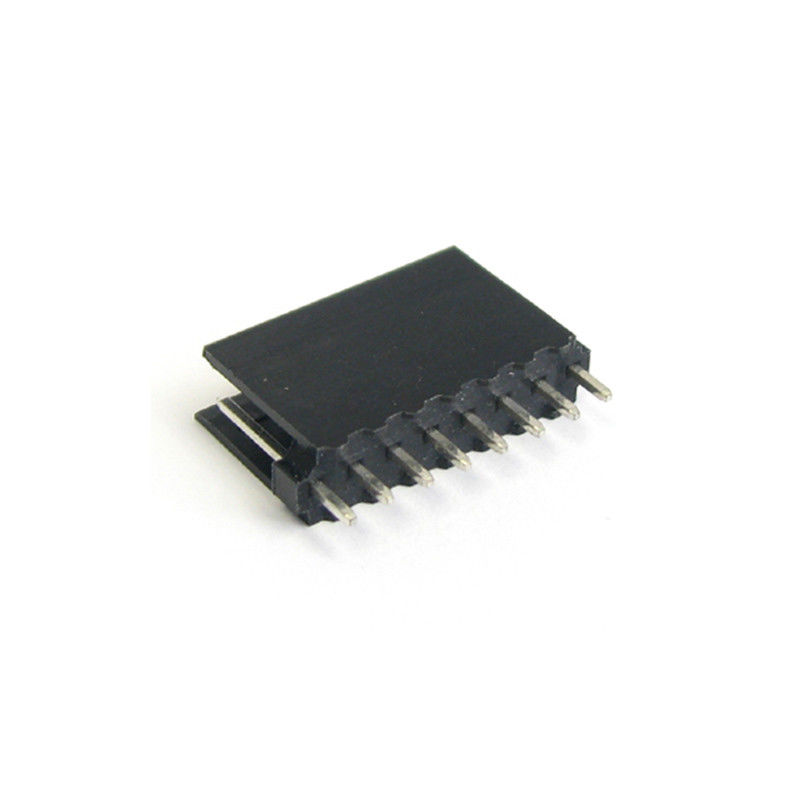

2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 8
2.54mm Circuit Board Wire Connectors Spacing Direct Line 6P Board End 0Drawing Download

1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30%GF UL94V-0WF2547-1WSXXXXXX1.pdf
