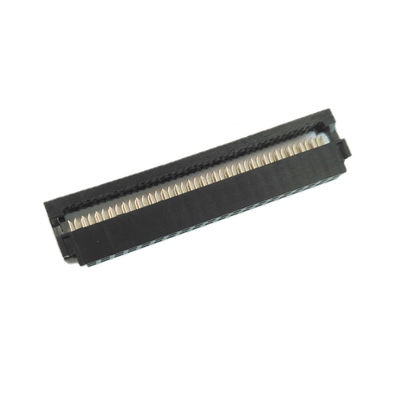

WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief

WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief

  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
  • WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/SGS/ROHS
Model Number: 5224-XXYPS0BW01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Tray
Delivery Time: 15~25 Working Days
Payment Terms: T/T
Supply Ability: 800000PCS
Contact Now
Detailed Product Description
Pitch: 2.0mm Color: Black
Type: Spring Type Port: Hong Kong
Trading Currency: HKD Or USD
High Light:

idc socket connector

,

idc ribbon connector

Current Rating 1.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material phosphor Bronze
Contact Plating Au Or Sn over Ni
Insulator Material PBT+30%GF UL94V-0



 F type IDC Socket Spring Type with Bump phosphor Broze without strain Relief.





WCON 2.0mm F Type IDC Socket Spring Type With Bump Phosphor Broze Without Strain Relief 0



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:IDC Socket 5224-XXYPXXBX01.pdf



Since its foundation, the company sticks to the
principle of specialization and tries its best to
Supply customers with products of high quality at competitive prices,
regarding .From the development and design of metal and plastic molds,
molds making, precision high-speed punch molding, precise plastic injection mol
ding and then automatic assembly.
